X-UAV Talon EPO 1718mm SPECIFICATIONS

Video Capture Resolution: Other

Type: Airplane

State of Assembly: Almost Ready

Remote Distance: 10km

Remote Control: Yes

Recommend Age: 12+y

Power Source: Electric

Plugs Type: T

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Expert

Model Number: Talon UAV 1720mm FPV plane

Material: Foam

Indoor/Outdoor Use: Outdoor

Flight Time: When flown properly the plane can have more than 1 hour of flight time

Features: Other

Dimensions: 300x200x100

Controller Mode: MODE2,MODE1

Controller Battery: 3S/4S

Control Channels: 12 Channels & Up

Charging Voltage: 12

Charging Time: 3

Camera Mount Type: Other

Aerial Photography: No

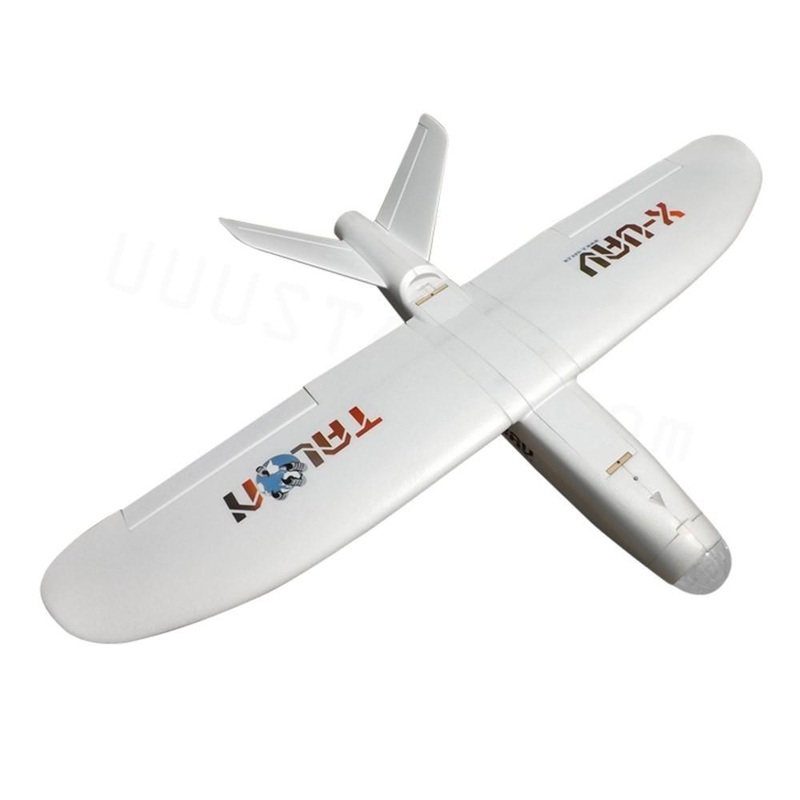

X-UAV Talon EPO 1718mm Wingspan V-tail white version FPV flying Glider RC Model Airplane

From the video,tester fly about 20km,Where can buy FPV Equipmentlike the video?

Please find from our store.

X-UAV Talon EPO 1718mm Wingspan V-tail white version FPV flying Glider RC Model Airplane

The Talon FPV V-tail Drone is an all EPO moulded airframe. The kit comes un-assembled with EPO
and laser cut plywood parts. This version 2 of the Talon has strengthened plywood wing saddle carbon support parts, and additional plywood pieces for easier FPV equipment mounting. Less guess work on your part. Also, the front wheel plywood mount has been strengthened to survive less than perfect arrivals better.

With a 4S 14.8V 10,000mAh LiPoly battery, flight times are long, and wing loading still low thanks to the generous wing area of the Talon. A generous fuselage compartment with large top hatch and removable nose bubble allows you to access your FPV equipment and flight battery in any configuration you choose. It is an open canvas for your FPV needs.

TALON Faxig PRODUCT PARAMETER Wingspan: 1718mm Lenath: 54.Sd m MIN: 10id P0 Unni BRAND: Xav/ Aar NAME: EM K# TALOVG;-MATERIAL EPO MOTOR: 3720KV-1200 ESC 60A SERVO: 2*96+2*176 PADDLE: 9*4.SIND BATTERY: 4S

Description:
Brand:X-uav
Item:Talon RC Kit V3
Material:EPO
Wingspan:1718mm
Length:1100mm
FlyingWeight:2500~3000g
WingArea:60dm
Wingload:55~66g/dm

Recommend Drive System:
Drive System:2820 or 3520 motor
Thrust Force:3000g
ESC:60A-70A
Servo:2*9g 2*17g servos
Propeller:12in
Battery:14.8V, 4S 10000MAH Li-polymer
Control system:FS-TH9X+R9B Transmitte

Features:
– Kit – All assembly and equipment installation required
– Moulded EPO airframe
– Laser cut plywood motor mount and wing saddle frame
– Version 2 Talon features strengthened ply parts and improved equipment mounting options
– Removable nose bubble for quick access to camera equipement.
– Large fuselage compartment accomodates many battery and FPV equipement configurations.
– Two Piece plug-in wings with carbon wing tube
– Detachable outrigger wheels

Note: Kit only, does not include motor/ESC/Servos
