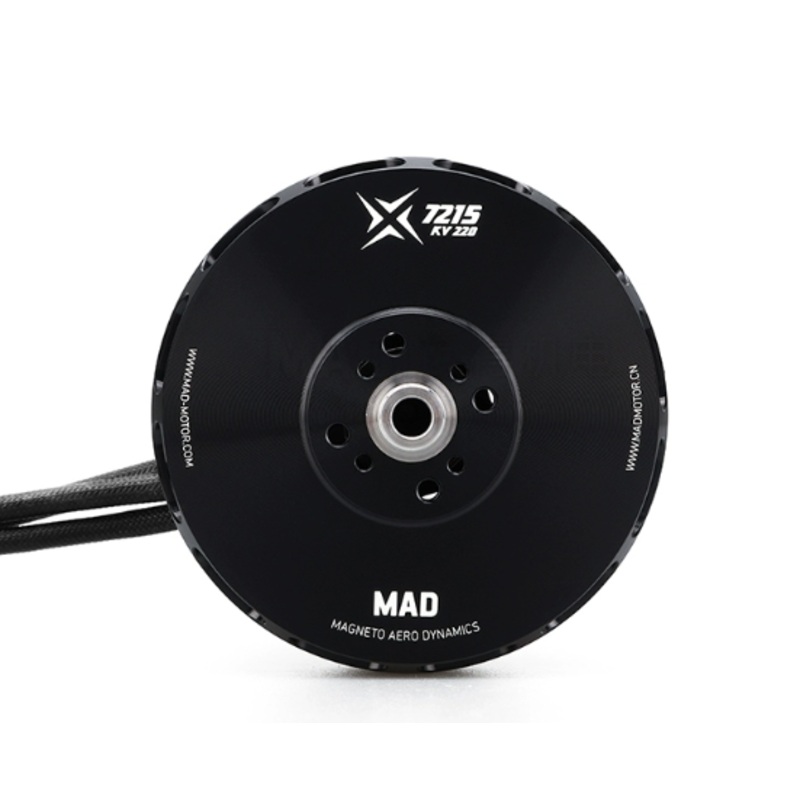

X7215 eVTOL Airplane Drone Motor

Product Overview:

Suitable for 120E-170E aircraft, equivalent to a petrol engine of about 30-40cc, these are very high-efficiency eVTOL engines. Various mounting options suitable for aircraft and multicopters. Optimized for best performance. Max thrust 14.8kg, more powerful and efficient than the same thrust motors on the market. Waterproof and dustproof. IP35 protection class.

Motor Data
Motor Model	MAD X7215 IPE V1.0	Number of pole pairs	11
Stator	Anticorrosive	Varnished wire Degree	220C
Motor Size	D:81.1 57.5 mm	Motor Balance	180C
Degree of Protection	IP35	Cable Length	150mm (extended Enameled wires
Centrifugal Heat Dissipation	YES	Rotor Balance	5 mg
Propeller Mounting Holes	D:20 M34 / M8 Nut	Motor Balance	10 mg
Shaft Diameter	IN: 10 mm	Motor Mounting Holes	D:36 M44, D:90 M44
Bearing	6900ZZ *3	Disruptive test	500 V

Key Highlights:

Recommended Hover Thruster 4.0~5.0 kgf

Maximum Weight: 14.8 kgf

Optimized Weight: 535 g

Applicable Vehicles:

Vertical Take-Off and Landing UAVs

Fixed-wing UAVs

Recommended Accessories:

ESC: AMPX 120A (5-14S)

Propeller: 19*10, 20*10 21*10

Selection and Installation Notes:

The propeller size and pitch should match your aircraft configurationan incorrect propeller will reduce efficiency or overload the motor/ESC.

Use an ESC with appropriate power rating and wiring harness capable of handling continuous and peak motor current.

Ensure the structural support and couplings can withstand torque and dynamic loads.

Perform a balance check and routine inspection before each manned flight.

Local aviation and manned flight regulations must be followed.

Frequently Asked Questions:

Q: Which propeller should I use?

A: Propellers: 19*10, 20*10, 21*10

Q: Which ESC is compatible?

A: Please use the model provided by the manufacturer: ESC: AMPX 120A (5-14S)

Q: What is the delivery time?

A: Delivery time is typically 7-14 days, but please confirm current stock and delivery time at checkout.

220KV
