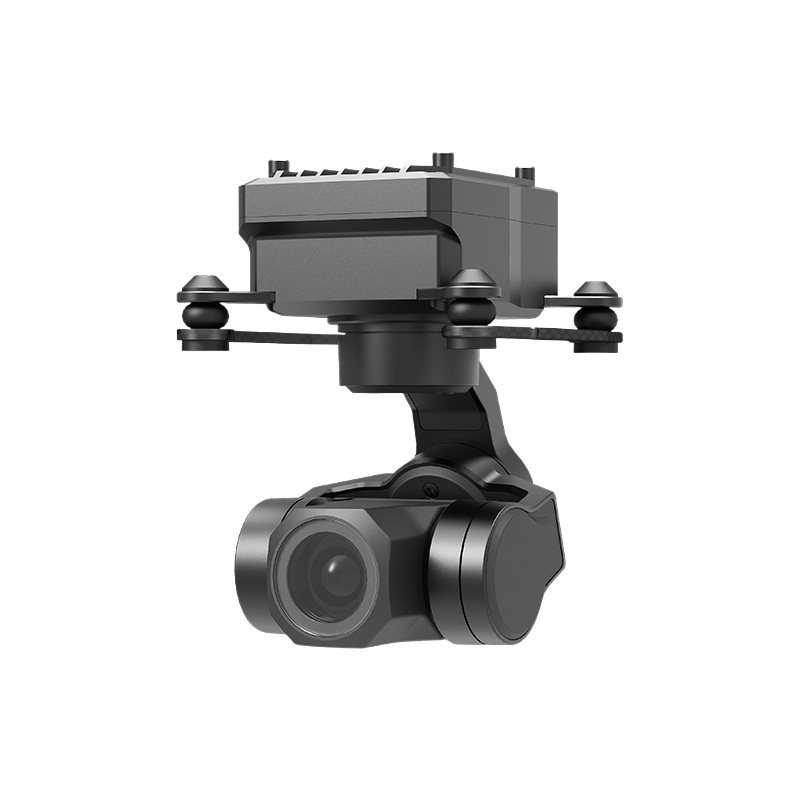

XF-Z-1Mini Intelligent 4K Full-Color Night Vision Micro Gimbal Camera

Characteristics

4K-resolution visible light camera, powered by the AI-ISP full-color night vision imaging engine, delivers clear full-color images in low-light environments. Featuring AI-HDR, it ensures both highlights and shadow details remain vividly visible even in complex lighting scenarios with extreme brightness contrasts.

Features AI multi-object detection and tracking, which can constantly track one of the persons and vehicles intelligently identified in the image.

Micro 3-axis nonorthogonal mechanical stabilized structure reducing the weight down to 69g.

Supports network, UART and S.BUS control and compatible with both private protocol and MAVLink protocol.

Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the gimbal provides a stabilization accuracy at 0.01.

Can be mounted onto multiple carriers, whether downward or upward.

With the Dragonfly software, user can watch the image and control the pod without protocol ducking, and download photos and videos online as well.

With the XF-QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.

Screen supports overlaying OSD information. Image supports EXIF saving. Live video stream and recording supports SEI saving. (The SEI functionality will be supported via subsequent firmware updates)

10~26.4 VDC wide voltage input.
