The new Defender 25 Motor designed for ultralight build, that micro drone change FPV in nowadays. Sub 250grams Defender 25 builds like these just got much nicer since we got the newest generation whoop style all in one (AIO) with iFlight new Defender 25 frame you can build the ultralight micro drone.
Specifications

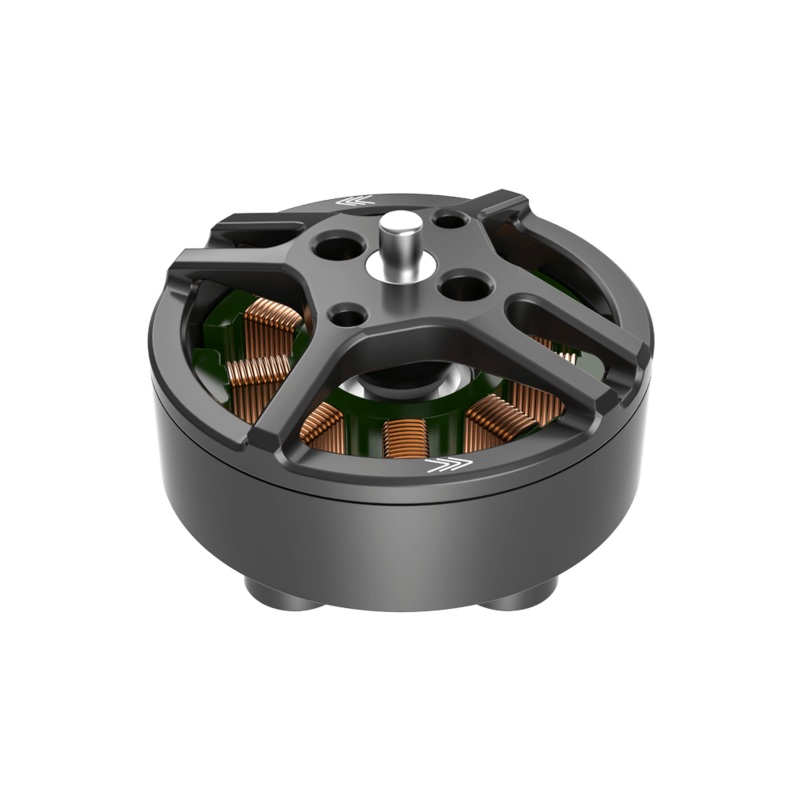

Model: Defender 25 Motor
KV: 4150kV
Weight(included wire): 8g0.5g
Dimension: 17.7*12.5mm
Interphase Resistance: 188m
Input Volts: 4S
Peak Current: 12.03A
Max Watt: 200.8W
Mounting Holes: 3 x 9*9 2mm(3 mounting holes)
Rotor Specifications: Segmented bell
Shaft Diameter: 1.5mm
Shaft Protruding Length: 1.8mm0.2mm
Lead: 60mm/26AWG
Magnet: N52H Curved
Configuration: 9N12P
Bearing Type: NMB
Bearing Specification: 5*2*2.5
Winding: Single Strand copper winding
Package included
1 x Defender 25 1404 Motor
4 x M2x5 mounting screws
2 x M2x7 mounting screws
