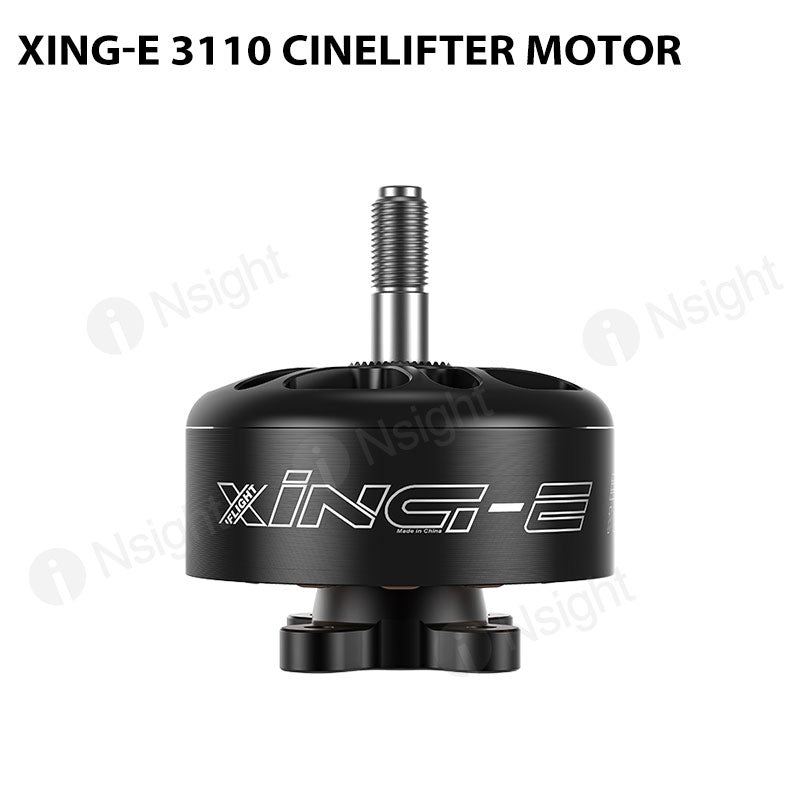

XING-E 3110 Cinelifter Motor

Features
High-strength 5mm Steel shaft
N52H High-temperature magnets
19x19mm hole pattern
Single strand copper winding
Hex bolt shaft set screw

Specifications
Model: XING-E 3110 Motor
KV: 900KV
Weight(included wire): 75.8g
Dimension: 36.4*25.4mm
Interphase Resistance: 81.9m
Input Volts: 33.6V
Peak Current: 65.54A
Max Watt: 2143.8W
Mounting Holes: 19*19 3mm
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: 11*5*5
Winding: Single Strand copper winding

Packing List
1 x XING-E 3110 900KV Brushless Motor
4 x M3x10 screws
1 x M5 Flange Nut
