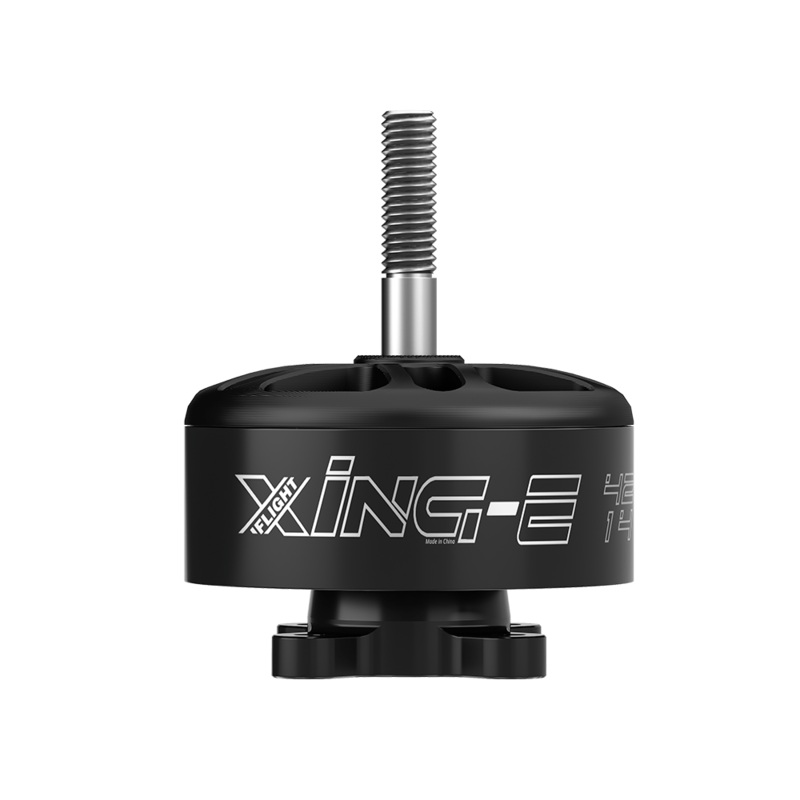

Introducing the newest high-performance motor from Xing-E.
Crafted to push the boundaries of what’s possible, this motor harnesses the latest advancements in technology, ensuring reliable and consistent performance. Unlock the full potential of your X413 Frame Kit and experience the difference that Xing-E’s cutting-edge innovation can make.
Specifications
KV: 400KV (8S)
Weight(included wire): 239g
Dimension: 48.6*60.5mm
Interphase Resistance: 83.4m
Input Volts: 32V
Peak Current: 65.54A
Max Watt: 3229W
Mounting Holes: 30*30mm-M4mm
Rotor Specifications: Segmented Bell
Shaft Diameter: 6mm
Shaft Protruding Length: 26.5mm
Lead: 800mm/14AWG
Magnet: N48SH Curved
Configuration: 12N14P
Bearing Specification: 12*6*4
Winding: Single Strand copper winding
Packing List
1 x XING-E 4214 400KV Motor
4 x M4x8 screws
1 x M6 Flange Nut
