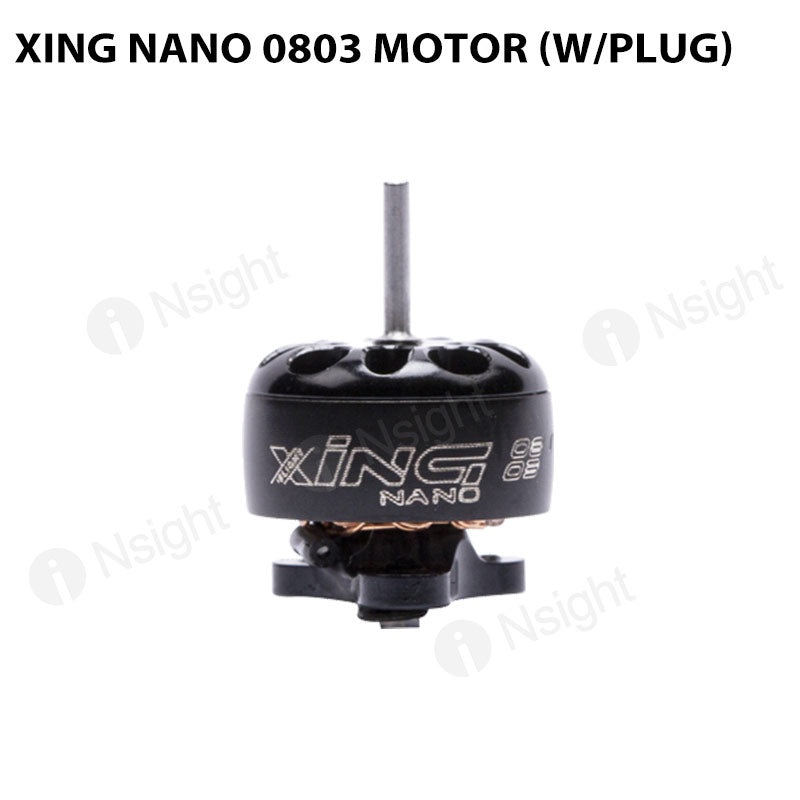

XING NANO 0803 Motor (w/Plug)

Specifications
Model: XING NANO 0803
KV: 17000KV
Input Voltage: 1S Lipo
Configuration: 9N12P
Stator Diameter: 8mm
Shaft: 1mm
Dimension: 10.9*9mm
Weight: 2.1g (with 30mm wire plug)
KV: 1700KV
Weight(included wire): 2.1g
Dimension: 10.9*9mm
Interphase Resistance: 58m
Input Volts: 1S
Peak Current: 4.11A
Max Watt: 16.4W
Mounting Holes: 6*6 1.4mm
Rotor Specifications: Unibell
Shaft Protruding Length: 5.5mm
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Winding: Single Strand copper winding

Packing List
1X XING NANO 0803 Brushless Motor
1X Motor Screw Pack
