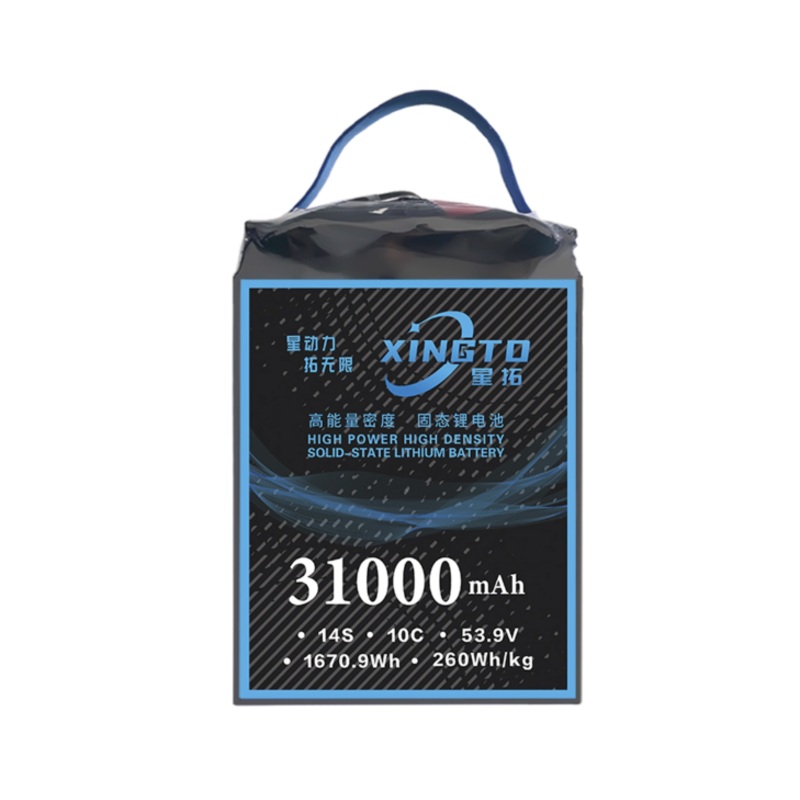

XINGTO 14S 31Ah 34Ah 37Ah 40Ah 53.9V 10C 260Wh/kg Solid State Battery for UAV Drone

Overview

The XINGTO 14S Solid State Battery series is built for professional UAV and industrial drone platforms that require high energy density and stable power. With 53.9V nominal voltage, 10C discharge rate and 260Wh/kg energy density, the 31Ah, 34Ah, 37Ah and 40Ah packs deliver 1.672.16kWh of energy in compact housings. These solid-state lithium batteries support long missions for logistics, inspection, firefighting, police, surveying and agricultural drones.

Key Features

• Solid-state lithium chemistry, 260Wh/kg high energy density

• 14S (53.9V) pack with 10C continuous discharge for powerful UAV propulsion

• Multiple capacities: 31Ah, 34Ah, 37Ah and 40Ah for different endurance needs

• Optimized size/weight balance for heavy-lift multirotor, single-rotor, fixed-wing and VTOL drones

• Stable performance, long-lasting durability and intelligent protection design

• Eco-friendly design and professional customization options

Specifications

Model Capacity	Rated Capacity (mAh)	Nominal Voltage (V)	Energy Density (Wh/kg)	Discharge Rate (C)	Energy (Wh)	Approx. Weight (kg)	Dimensions (mm)
31Ah	31,000	53.9	260	10	1670.9	6.78	210 171 92
34Ah	34,000	53.9	260	10	1832.6	7.30	230 145 107
37Ah	37,000	53.9	260	10	1994.3	8.00	240 159 107
40Ah	40,000	53.9	260	10	2156.0	8.55	240 164 107

Connector Options

The default connector for the XINGTO 14S Solid State Battery for UAV Drone isAS150U.
According to system requirements, the following connectors can be customized: XT60, XT90, QS8, QS9, QS10, AS150, AS250 and others. Please contact us for detailed connector and cable configuration.

UAV Applications

These XINGTO 14S 31Ah40Ah Solid State Batteries are suitable for:

• Single-rotor, multirotor, fixed-wing and VTOL UAV drones

• Cargo and logistics drones

• Aerial survey and mapping drones

• Firefighting and emergency-response drones

• Police, patrol and inspection drones

• Agricultural spraying and plant-protection drones

Safety & Storage Guidelines

• For long-term storage (over 3 months), keep the battery in a dry, cool place and perform a chargedischarge cycle about every 3 months to maintain stability.

• Do not over-charge or over-discharge; this can cause swelling and loss of performance.

• Keep away from water, fire and heat sources during use, storage and charging.

• Use only dedicated lithium battery chargers and do not charge unattended.

• Always observe correct polarity; never short-circuit the terminals with metal objects.

• Do not drop, crush, puncture, disassemble or modify the battery.

• If any abnormal smell, heating, discoloration or deformation appears during use, storage or charging, stop using the battery immediately and remove it from the device or charger.

• Ensure the terminals are clean and dry before connection; dirty or loose terminals may cause poor contact and malfunction.

Details

Xingto high power high density solid-state lithium battery, 40000mAh, 14S, 10C, 53.9V, 2156Wh, 260Wh/kg.

Xingto high power high density solid-state lithium battery, 37000mAh, 14S 10C 53.9V, 1994.3Wh, 260Wh/kg.

Xingto high power high density solid-state lithium battery, 34000mAh, 14S 10C 53.9V, 1832.6Wh, 260Wh/kg.

Xingto high power high density solid-state lithium battery, 31000mAh, 14S, 10C, 53.9V, 1670.9Wh, 260Wh/kg.
