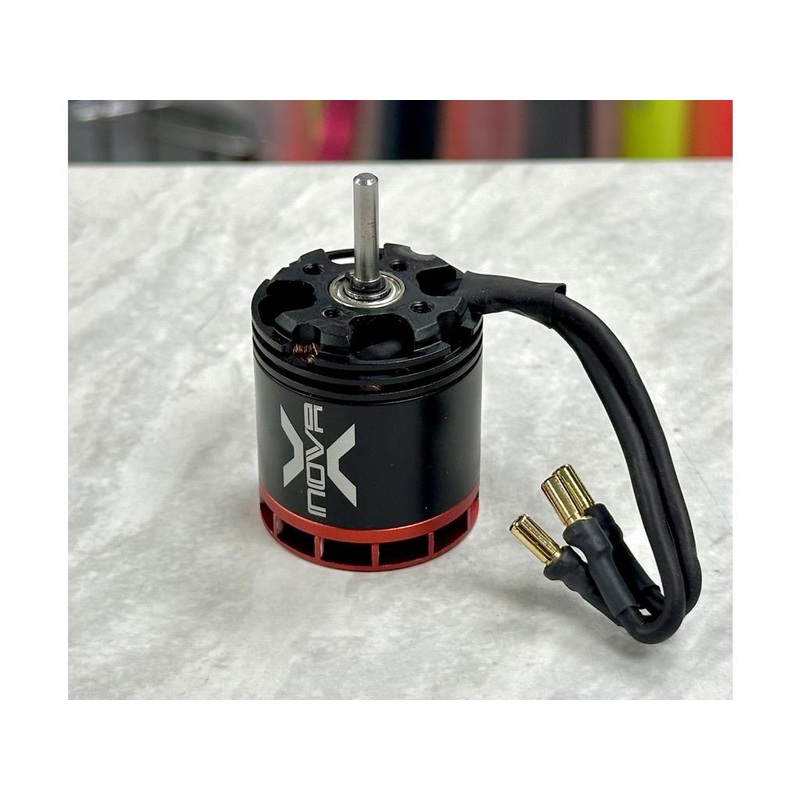

Second HandXnova XTS 2618-1580kV 10P Motor
Excellent Condition
| Slots & Poles | 12n10p |
| Winding T | 11D |
| rpm/V | 1580 |
| Volt (V) | 10 / 22.2 |
| Io(A) | 2.0 / 3.5 |
| Rm (mohm) | 20 |
| Weight (without connector) (g) | 110 |
| Body Length (no shaft) mm | 38.1 |
| Diameter (mm) | 33 |
| Shaft Length (mm) (Details pictures) | A,B,C |
| Shaft Dia. (mm) | A=3.5 / B=3 |
| Mounting Holes CTC Distance (mm) | 19*2 & 16*2 |
| Mounting Screw | M3x0.5 |
| Max Eff. Curr. | 31.62 / 62.33 |
| Max Eff. | 87.35 / 88.77 |
| Kt (Nm/A | 0.006 |
| Km (Nm/sqrt(w)) | 0.0427 |
| Max Continuous Power(Watts) | 800 |
| Peak Continuous Power(Watts) (2 sec) | 1060 |
| Max Continuous Current(Amps) | 40 |
