Description

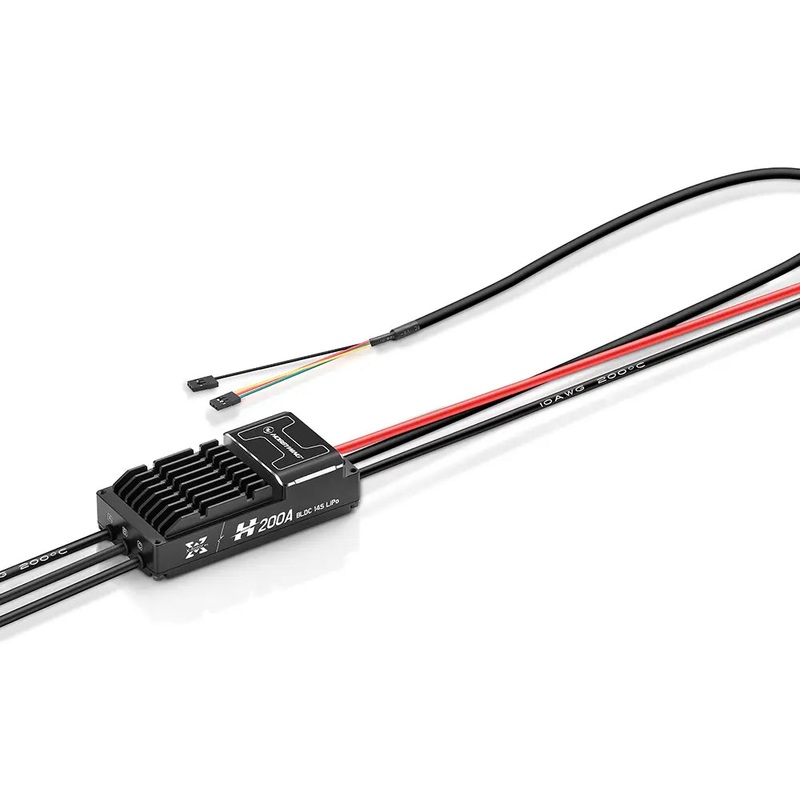

The HOBBYWING XRotor Pro H200A 14S BLDC ESC features advanced high-temperature hardware with 3OZ thick copper PCB and double-sided heat dissipation, supporting up to 170C. Intelligent timing and DEO algorithms provide stable drive, higher efficiency, and improved braking performance for high-KV UAV motors. Equipped with H200A-BLDC-IPC intelligent propeller control, it allows open parameter settings to prevent motor overheating, ideal for VTOL and drone dock applications. The lightweight aluminum shell with nano-coating ensures IP55 dustproof and waterproof protection, customizable to IP67. Dual-throttle redundancy, isolated communication, and shielded signal cables enhance anti-interference reliability. Built-in black box records up to 48 hours of operational data for fast fault analysis, with protections including power-on self-test, over/under voltage, over-current, and throttle loss. Optimized structure and new shell design enable easy installation on multi-rotor and fixed-wing drones.
| Product Name | |
|---|---|
| XRotor Pro H200A-14S-BLDC | |
| Specifications | |
| Input Voltage | 6-14S (18-63V) |
| Continuous Current | 100A (Good heat dissipation) |
| Peak Current (3s) | 200A (3s) |
| Operating Temperature | -40 ~ 65 |
| Communication Protocol | CAN (Custom Serial port) |
| Isolation Mode | Throttle / Communication Supported |
| Firmware Update | Support |
| Digital Throttle | Support (CAN) |
| PWM Input Signal Level | 5V / 3.3V |
| Throttle Signal Frequency | 50-500Hz |
| Operating Pulse Width | 1100-1940s |
| Throttle Travel Calibration | No |
| Double Throttle Signal | Yes (CAN + PWM) |
| Propeller Positioning | Optional. Max positioning working current is settable. |
| Fault Storage | 2~48 hours of operating data & fault code storage |
| Ingress Protection Rating | IP55 (Custom IP67) |
| Weight (Without Cable) | 270g |
| Size | 116 x 56 x 31.5mm |
| Cable Specification | Input: Silicone cable-10AWG-260mm 2 Output: Silicone cable-10AWG-200mm 3 Signal: Shielded cable – 5pin – 450mm 1, JR-3Pin male connector 2 |
