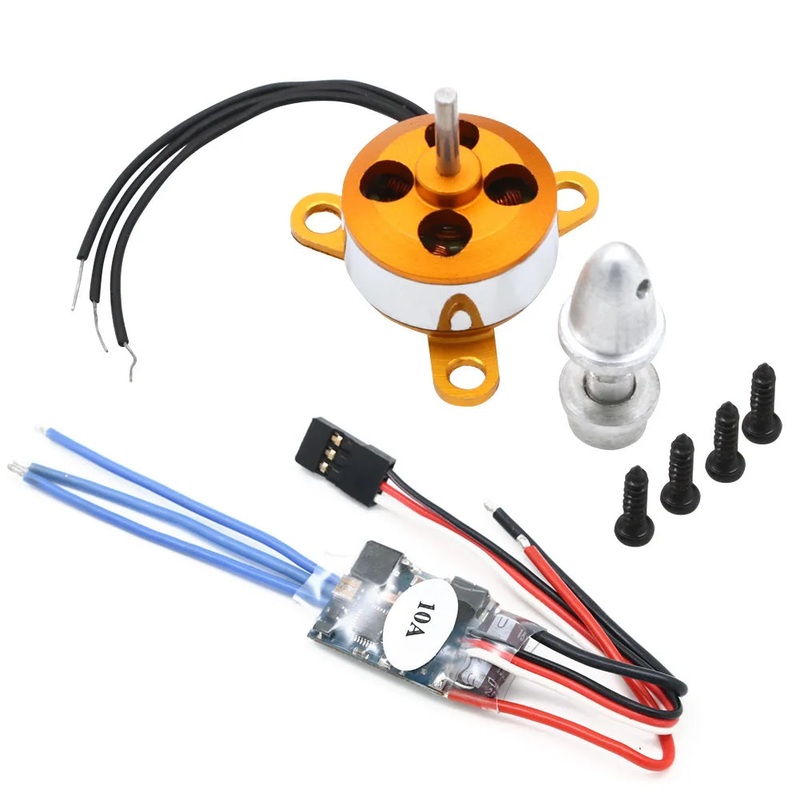

The A1504 Micro Brushless Motor is a lightweight and high-speed motor ideal for mini quadcopters and fixed-wing RC aircraft. Weighing only 9g and available in four KV options2200KV. 2700KV. 2900KV. and 3200KVthis 15mm x 13.5mm motor offers excellent performance with optimal efficiency at 2A6A. It supports 23S LiPo input and features a 2mm shaft. making it compatible with 4545. 5043. and 5030 propellers (not included). This motor set includes a 10A ESC with 1A BEC and supports up to 8K PWM for smooth control. Perfect for DIY micro drones. copters. quadcopters. and mini fixed-wing airplanes.
Specification
Brushless Motor (A1504)
| Parameter | Value |
|---|---|
| KV Rating | 2200KV / 2700KV / 2900KV / 3200KV |
| Size | 15mm x 13.5mm |
| Weight | ~9g |
| Shaft Diameter | 2mm |
| Max Efficiency Current | 2A6A (>70%) |
| Max Operating Current | 7.5A |
| Voltage Input | 23S LiPo |
| IO (No-load Current) | 0.5A / 10V |
| Recommended Propellers | 4545 / 5043 / 5030 (not included) |
| Cable Length | ~45mm |
| Applications | Mini 4-axis. Mini Fixed Wing |
ESC (Electronic Speed Controller)
| Parameter | Value |
|---|---|
| Weight | 8g |
| Size | 23.5 15.7 6.1 mm |
| Rated Current | 1015A |
| BEC Output | 1A |
| PWM Frequency | 8K |
| Li-Po Support | 23S |
