XXD A2212 2200KV 2212 Brushless Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Universal Joint

Tool Supplies: Grinded

Technical parameters: Value 7

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: KV2200+30A ESC+6035

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

SG90A 9G Micro Servo

This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.

Key features:
Translucent body
Lightweight
Less noise

TS90A 9G servo parameters:
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V

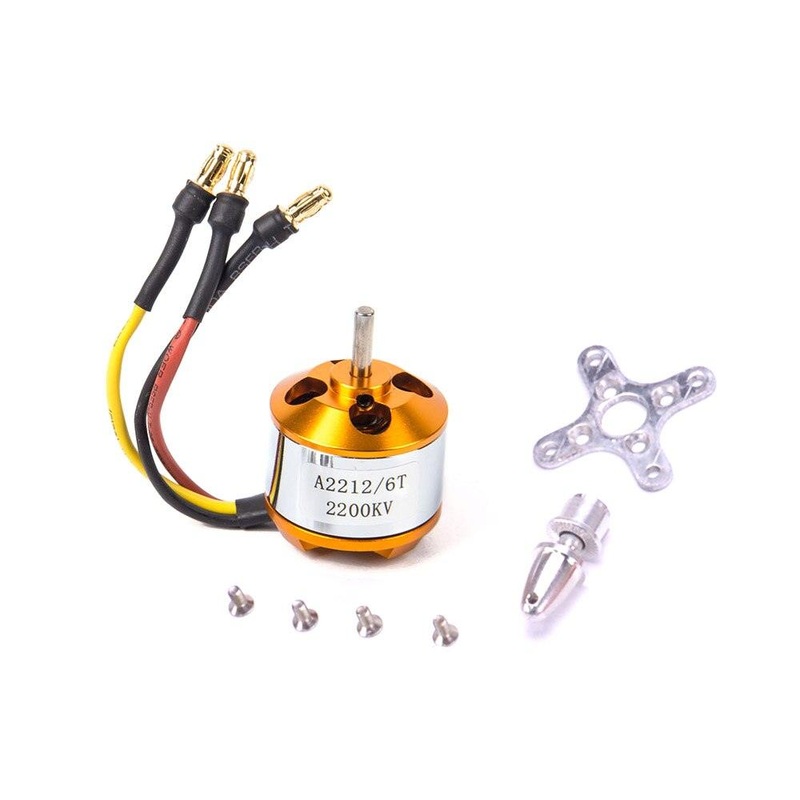

A2212 2200kv Motor Specification:

KV: 2200
Ri(M ): 0.033
Battery: 2-3Li-Po
Max Power: 342W
Test Prop: 7×3/7×4
Motor Size: 27.5x38mm/1.08”x1.5”
Shaft Diameter: 3.17mm/0.12”

30A Brushless speed controller ESC MultiCopter Quad-rotor X-copter

Specification:
Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter
-Output: Continuous 30A, Burst 40A up to 10 Secs.
-Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
-BEC: 2A / 5V (Linear mode).
-Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
With T plug and 3.5mm banana connectors
