The XXD A2212 Brushless Outrunner Motor is a widely-used and reliable motor for RC aircraft, multicopters, and drones. Available in multiple KV ratings from 930KV to 2700KV, this motor supports a wide range of thrust, torque, and propeller combinations, making it ideal for beginner planes, stunt models, and high-speed racing drones.
Crafted with high-quality materials and optimized for efficiency, the A2212 provides stable performance across 2S3S LiPo batteries. Whether you’re building a slow-flying trainer or a 3D stunt aircraft, theres a KV variant to suit your needs.
Specifications (Common):
Parameter Value Model A2212 (Brushless Outrunner) KV Ratings 930 / 1000 / 1200 / 1400 / 1800 / 2200 / 2450 / 2700KV Operating Voltage 23S LiPo Shaft Diameter 3.17 mm Motor Dimensions Approx. 27.5 2730 mm Max Efficiency ~80% Max Efficiency Current 410A (>75%) Current Capacity 12A for 60s No-Load Current 0.5A @10V (varies by KV) Weight 4750g (depending on KV rating) ESC Recommendation 20A30A (depending on KV) Mounting Standard cross mount KV-Specific Details:
930KV / 1000KV
-
Ideal for forward-pull setups with 1060 or 9050 props
-
Best for trainers or slower fixed-wing aircraft
1400KV / 1750KV
-
Great for 3D stunt planes, WWII warbirds, or versatile flyers
-
Recommended Props: 9050, 8040, 8060, 7035
2200KV
-
Best for push-back setups with high-speed fighters
-
Works well with 60307035 props
2700KV
-
High-rpm motor for thrust-back speed machines
-
Best with 5030 / 6030 props
-
Max Power: 240W, Idle: 1.8A, Load Current: 18.5A
Propeller Recommendations (Reference Table):
KV Rating Suggested Propeller(s) 9301000KV 1060 / 1147 / 9050 1400KV 9050 / 8040 / 8060 1750KV 7035 / 6030 2200KV 7035 / 6030 2700KV 6030 / 5030 Note: For 2S (7.4V) setups, 2212 props are recommended. Always match prop size and KV to your battery for optimal performance and efficiency.

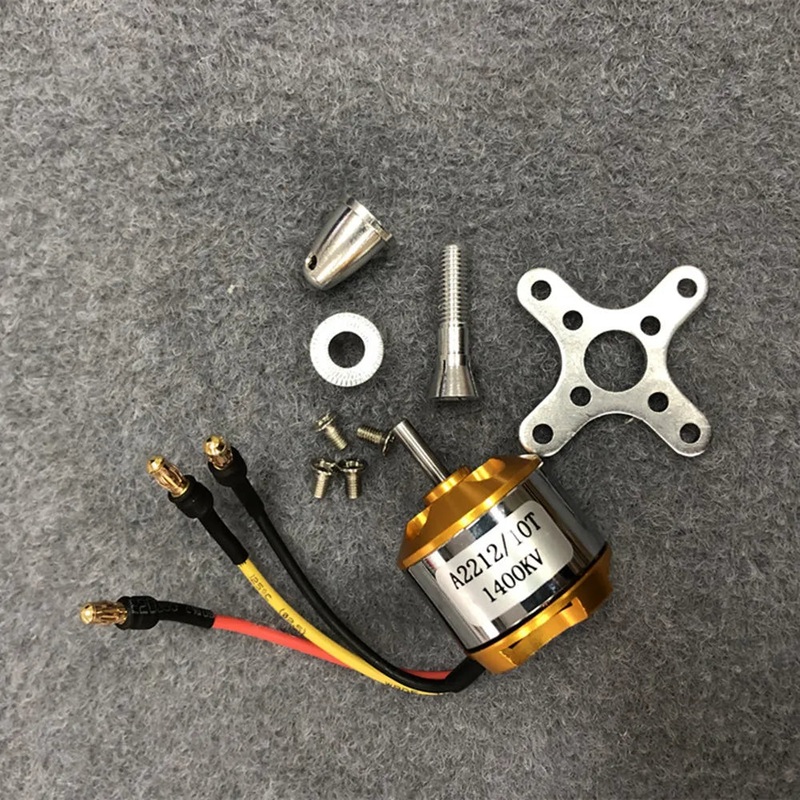

Package Includes:
-
1 XXD A2212 Brushless Motor
-
1 Propeller Adapter
-
4 Mounting Screws
-
