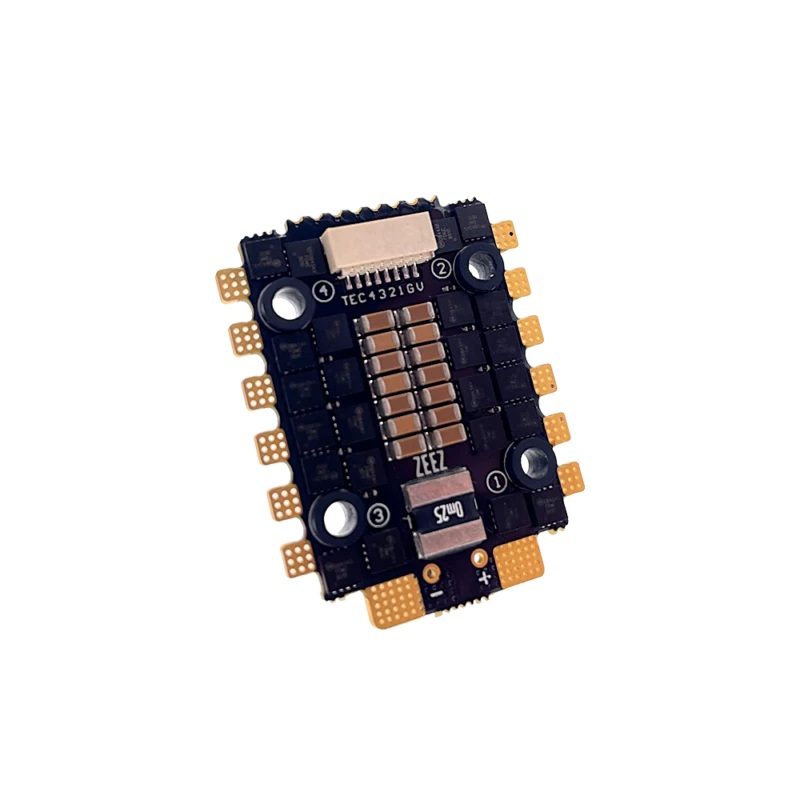

Zeez Design 20×20 45amp 4-in-1 BLHeli_32 ESC V3 2022

Are you looking to buy Zeez Design 45A 20x20ESC in Australia?

TheZEEZ 45A 4-in-1 ESCis an improved version of last years 2020 ESC. We took all the positive feedback from our users around the world along with the new advancements in technology and we truly raised the bar with this one.

TheZEEZ 45A 4-in-1 ESCcomes with thefastest MCUavailable which is fully supported byBLHELI32, theSTM32G0. It supports Bi-directional DSHOT and all digital protocols(DSHOT150, DSHOT300, DSHOT600)out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).

We took advice from some of our newer pilots and have improved the solder pads by giving them more clearance.

Features
LiPo Power input: 3S-6S
Cont.Current: 45Ax4
Burst Current: 55Ax4
Input wires: 14AWG-130mm* (Red/Black)
Output Wire: solder pads and 8P connector
High Quality MOSFET 30V rated with RDS(on) 1.3 m
Mounting holes: 20x20mm
ESC Firmware: BLHeliSuite32

Package includes:
(1X) ZEEZ 45A 4-in-1 ESC
(4X) Aluminum Standoff
(1X) ESC to Flight Controller 8 Pin to Servo Connector JST SH
1.00mm connector
(2X) 470uF 35V Low ESR Capacitor
(1X) XT60 with 12AWG Silicon Cable for battery connection
