Overview

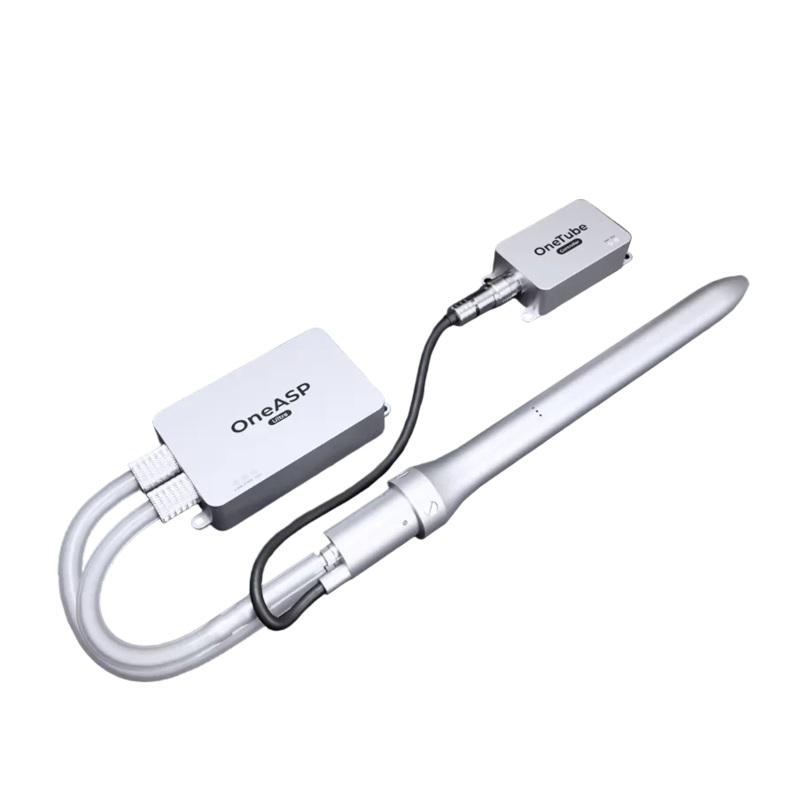

The ZeroOne OneASP Ultra is an airspeed sensor designed for high-speed aircraft applications, providing reliable airspeed data for flight control systems. It supports a wide measurement range of 0~1636.9km/h (at 15C, 101325Pa standard atmosphere conditions) and uses DroneCAN bus communication for interference-resistant data transmission.
Key Features
- Wide airspeed measurement range: 0~1636.9km/h (at 15C, 101325Pa).
- Total error band: 0.25% FS.
- 24-bit ADC with built-in storage compensation.
- DroneCAN bus communication (designed for stronger interference resistance vs. traditional I2C).
- Flight controller compatibility: ArduPilot and PX4.
- Durable housing design: aerospace aluminum shell; silicone tube locking structure (as shown).
For customer service and ordering support, contact https://rcdrone.top/ or email [email protected].
Specifications
OneASP Ultra Airspeed Sensor (Module)
| Airspeed measurement range | 0~1636.9km/h (@15C 101325Pa standard atmosphere conditions) |
| Total error band | 0.25% FS |
| Communication protocol | DroneCAN bus communication |
| Flight controller compatibility | ArduPilot, PX4 |
| Operating voltage | 4.7-5.3V |
| Operating temperature | -20C~85C |
| Housing material | Aerospace aluminum |
| Dimensions | 78.6mm*39mm*15mm |
| Weight | 40g |
| Drawing dimensions shown | 67mm, 25mm, 39mm, 15mm |
Standard Airspeed Tube (as shown)
| Length | 172.6mm |
| Diameter (shown) | 15mm |
OneTube Heated Airspeed Tube (as shown)
| Maximum measured speed | 0.8 Mach (approx 980 km/h) |
| Heating power | 65W Max |
| Size | 208mm*19mm*19mm |
| Length (drawing shown) | 208.6mm |
| Diameter (drawing shown) | 19mm |
| Weight | 70g |
| Warm-up (shown) | From -20C to 60C in 1 minute |
Whats Included
Package contents shown in the images (may vary by selected kit):
- OneASP Ultra module
- Standard airspeed tube
- 04R CAN/I2C cable
- Silicone tube 2m
- Certificate
Kit shown that includes OneTube (in addition to the above):
- OneTube heated airspeed tube
- Heated airspeed tube controller
Applications
- Airspeed measurement input for ArduPilot and PX4 flight controllers
- High-speed aircraft testing and flight phases requiring a wide airspeed range (as shown)
Manuals
- https://ardupilot.org/
- https://docs.px4.io/
- https://github.com/Firmware-Autopilot
Details
OneASP Ultra airspeed sensor for high-speed aircraft, measures 01636.9 km/h, 0.25% FS accuracy, 24-bit ADC, DroneCAN protocol, supports supersonic testing with user-supplied pitot tube.
OneASP Ultra measures 01636.9 km/h airspeed, ideal for high-speed aircraft in all flight phasesincluding takeoff and landingwithout sensor switching under standard atmospheric conditions.
OneTubehia T16ZE) OneTube zaehl# I#65WB @bliat0zmexe12434 00.tiz60 C_ EaitmiE Zo @p @7E1i36852*-mIit uaeja tRiaWemimi MRi7s Ibiaxoa
OneASP Ultra features a 24-bit ADC with storage compensation for precise air pressure digitization and uses DroneCAN protocol for long-range, low-latency, interference-resistant communication, surpassing I2C in range and reliability.
OneASP Ultra features a rugged aerospace-grade aluminum alloy casing, offering superior impact and shock resistance compared to traditional bare board designs. Silicone tube locking structures ensure secure, reliable connections that resist loosening. The design prioritizes durability and stability for demanding applications, with silicone tubes visibly secured by metallic clamps on the devices sideenhancing operational safety and longevity in high-stress environments.
OneASP Ultra airspeed sensor specs: 0-1636.9 km/h range, 0.25% error, DroneCAN protocol, ArduPilot/PX4 compatible, 4.7-5.3V, -20C to 85C, aluminum case, 78.6x39x15mm, 40g. Includes standard pitot tube diagram.
OneTubehi EZ Enrem MB is an high-speed measuring instrument that can reach speeds of up to 47,980 km/h. It features a 65W max reach and weighs 18g. The product measures 208mm x 19mm x 19mm in length.
OneASP Ultra package includes module, heated pitot tube, controller, CAN/I2C cable, silicone tube, and certificate. Open-source projects Ardupilot, PX4, Firmament noted with resources links for user support and learning.
