Overview

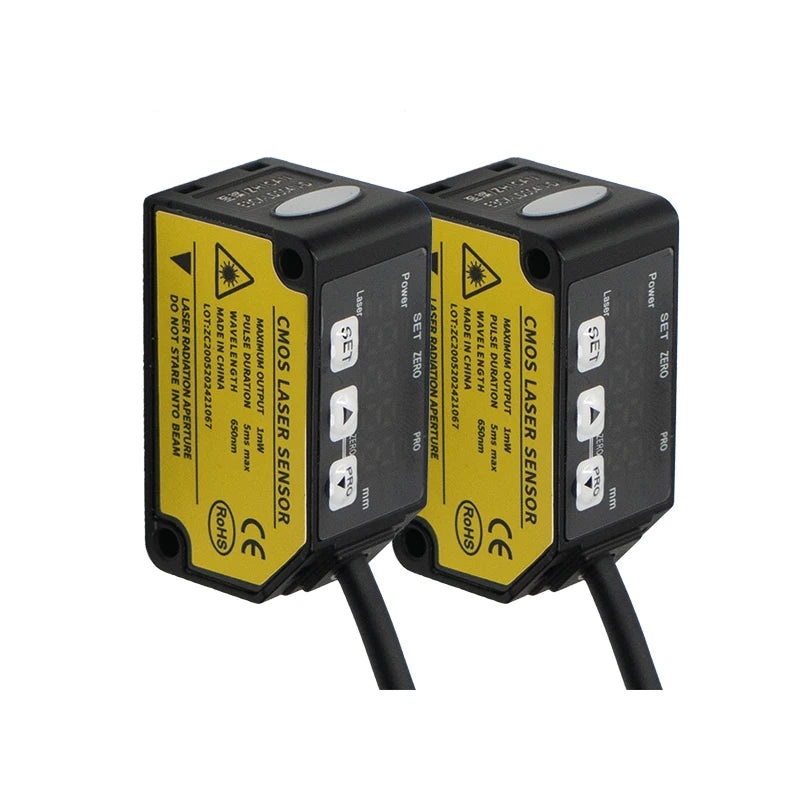

The ZHICAN E3CX-LDS Series is a laser displacement sensor for non-contact distance, thickness, and height sensing. It is an optical-electronics sensor with a switching transducer output, and series variants are indicated for analog and RS485 communication. Designed for precise optical measurement tasks, it suits industrial automation scenarios requiring reliable displacement feedback.
Key Features
- Laser displacement measurement for non-contact sensing
- Optical sensor architecture for stable detection
- Switching transducer output; customized variants available
- Series indicates analog and RS485 options
- Suitable for distance measurement, thickness gauging, and height sensing
Specifications
| Brand Name | NoEnName_Null |
| High-concerned chemical | None |
| Material | Mixture |
| Origin | Mainland China |
| Output | Switching Transducer |
| Theory | Optical Sensor |
| Type | Optical-Electronics Sensor |
| is_customized | Yes |
Applications
- Distance measurement for automation and positioning
- Thickness measurement in process monitoring
- Height sensing for parts inspection and handling
Details
E3CX-LDS Series Laser Displacement Sensors offer precise micrometer to nanometer measurements without damaging objects. Features include rapid feedback, environmental adaptability, and multiple specifications. CMOS laser sensor with 650nm wavelength, 1mW output, and CE/ROHS compliance.
Seven advantages of laser displacement sensors: precise safety, rapid feedback, anti-interference, output diversity, compact, accurate measurement, high cost-performance ratio.
Laser displacement sensor with 0.010.8mm accuracy, 30400mm center distance, and 5200mm range for short to long-range detection. Ideal for versatile industrial applications requiring adjustable precision.
Compact CMOS laser sensor, 44mm long, detects with 0.01mm accuracy. Emits 650nm wavelength, 1mW output, RoHS compliant. Ideal for precise laser alignment in chip production and detection. (39 words)
CMOS laser sensor with power, STE, zero adjustment, digital indicator lights; SET, up/down/PRO buttons; laser emission indicator; CE and RoHS compliant. (34 words)
ZHICAN Laser Displacement Sensor, aluminum casting shell, CMOS laser technology, safety certified.
E3CX Series laser sensor with DC12-24V, NPN/PNP output, lead connection, 30-400m detection range. Ideal for short to long-range use in diverse applications. (38 words)
Detect material on conveyor belt, small objects in groove, step differences, belt curvature, object flatness, and remaining rolled material stock.
Explains normally open and closed concepts for NPN and PNP sensors. Describes voltage output behaviors: NPN outputs negative voltage, PNP outputs positive voltage under different conditions.
ZHICAN E3CX-LDS laser displacement sensor with four-wire NPN output offers power, zero adjustment, teach, and trigger functions. Includes +V, 0V, external input, and control output connections for easy setup.
Laser displacement sensor with PNP/NPN options, CMOS laser, analog output (05V or 420mA), external input, control output, zero adjustment, teach, trigger, and simulated grounding.
Six-wire PNP circuit diagram for E3CX-LDS003N-D 2M laser displacement sensor, detailing external input, control and analog outputs, grounding, and model naming convention.
ZHICAN E3CX-LDS laser displacement sensors offer short, medium, and long-range detection with switch or analog output. Models vary by distance, accuracy, and cable length, featuring NPN/PNP outputs and dual or single output types.
ZHICAN E3CX-LDS laser displacement sensor offers long-range detection with 400200mm range, 0.4mm/0.8mm accuracy, switch and analog outputs, compact 442520mm design, operation panel, laser windows, 2M cable, and installation guide.
Guidelines for installing ZHICAN E3CX-LDS laser displacement sensor: proper mounting for rotating objects, step differences, narrow spaces, and vertical walls to minimize errors and ensure accurate measurements.
