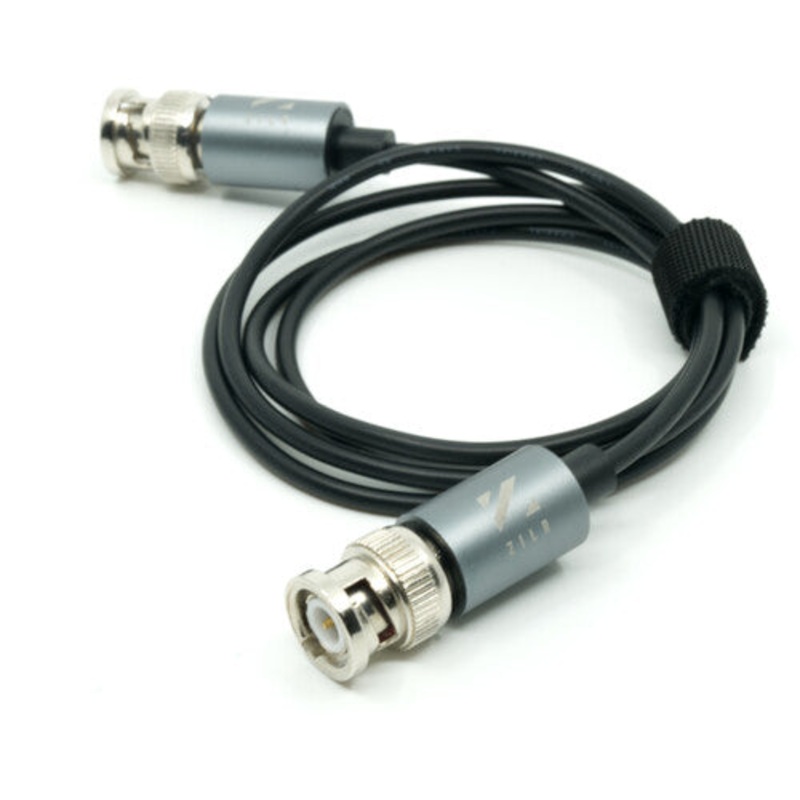

ZILR 12G-SDI BNC Cable 1m

ZILR 12G-SDI BNC Cable supports signals from 12G-SDI, 6G-SDI, HD-SDI and 3G-SDI. Designed for use for professional equipment requiring an SDI connection.

Specifications

• Support for one device up to 4096-by-2160 resolution at 60Hz

• Full HD 1920-by-1080p resolution up to 60Hz

• 12G-SDI, 6G-SDI, HD-SDI and 3G-SDI compatible

• BNC to BNC

• Cable Thinkness: 3.0+/-0.15mm

• Shielding: Copper Braid >85%

• Shielding: Copper Braid >85%

• Wire Gauge: 28AWG

• Coaxial Type: RG-6

• Insulation Type: Polyethylene 80p

• Connectors: Gold Pin Connection 15u”

• VSWR (Voltage Standing Wave Ratio): 1.5D-2V

• Up to 12Gbit/s bitrates

• Frequency: DC to 12 GHz

• Maximum Impedance: >75 Ohms

• Cable Length:1 m

• Connector (BNC, incl. terminal)

• Height: 19 mm

• Width:9 mm

• Depth:37 mm

• Weight:42 g

What’s in the Box

• SDI Cable

• Pouch
