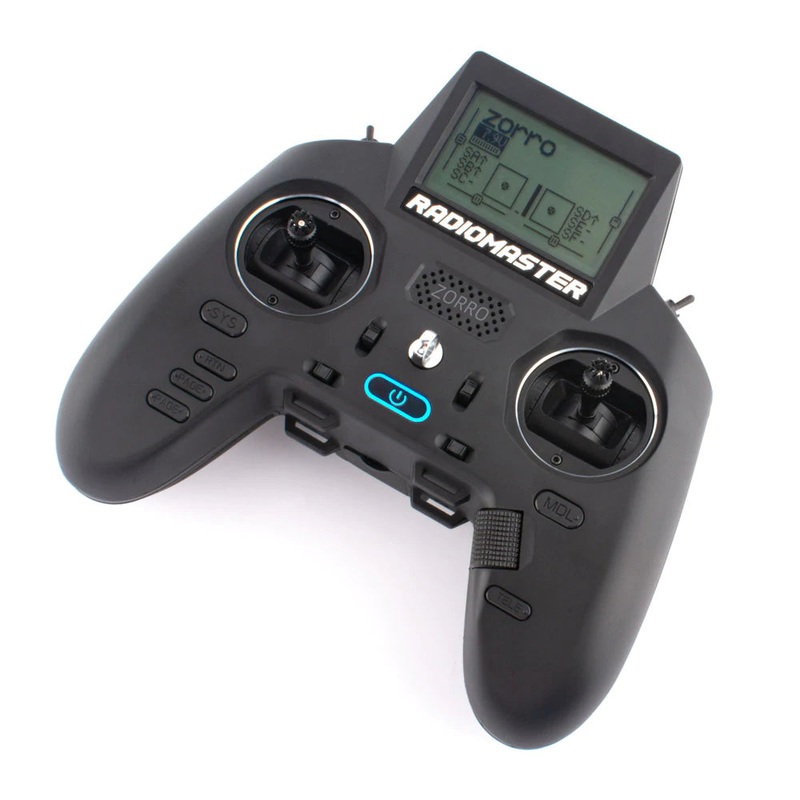

Featuring an ergonomic design, a large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again. Choose between the 4-in-1 and ELRS TX Module.
Features
- Supports OpenTX and EDGETX
- Configurable for mode 1 or 2
- Adjustable hall gimbals
- External nano module bay
- USB-C Charging
- Supports internal 18350 batteries, and external 2s power
- Foldable antenna for easy travel
- Mounting points for aftermarket attachments
Specifications
- Display: 128×64 Monochrome LCD
- Gimbal Type: Hall-Effect Sensor
- RF Module: 4-In-1
- External Module Bay: Nono Size
- Supported Battery: 2 x 18350 (not Included)
- RF Power: 20dB Maximum (4in1) / 250mw (ELRS)
- Antenna gain: 2dB
- Charging Port: USB-C
- Operating Voltage: 6.6-8.4V
- Firmware: OpenTX
- Maximum channels: 16 (RX dependent)
- Operating Frequency: 2.5-2.48GHz
- Dimensions: 170x159x108mm
- Weight: 350g
- TX Module Choice
- 4in1 (FrSky, DSMX, DSM, FlySky, Futaba, ect)
- ELRS
Includes
- 1x Zorro Radio with 4-IN-1 RF Module
Find the user manual HERE
