AGFRC B13DLM V2 SPECIFICATIONS

Brand Name: AGFrc

Origin: Mainland China

Material: Plastic

Recommend Age: 14+y

RC Parts & Accs: Servos

Size: 22.8*12*29.4mm (0.89 x 0.47 x 1.15 in)

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Certification: CE

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Servos

Tool Supplies: Battery

Quantity: 1 pcs

Model Number: B13DLM V2

Four-wheel Drive Attributes: Assemblage

Color: Red and Black

Case Material: Plastic +Aluminum

Motor Type: DC

Wegith: 16g

Connector Wire: JR 180mm / 26AWG

Application: Ideal for 1/14. 1/16 Revo. 1/18. 1/24 Scale Crawler. Airplane. 450 Size Helicopter. Robot etc.

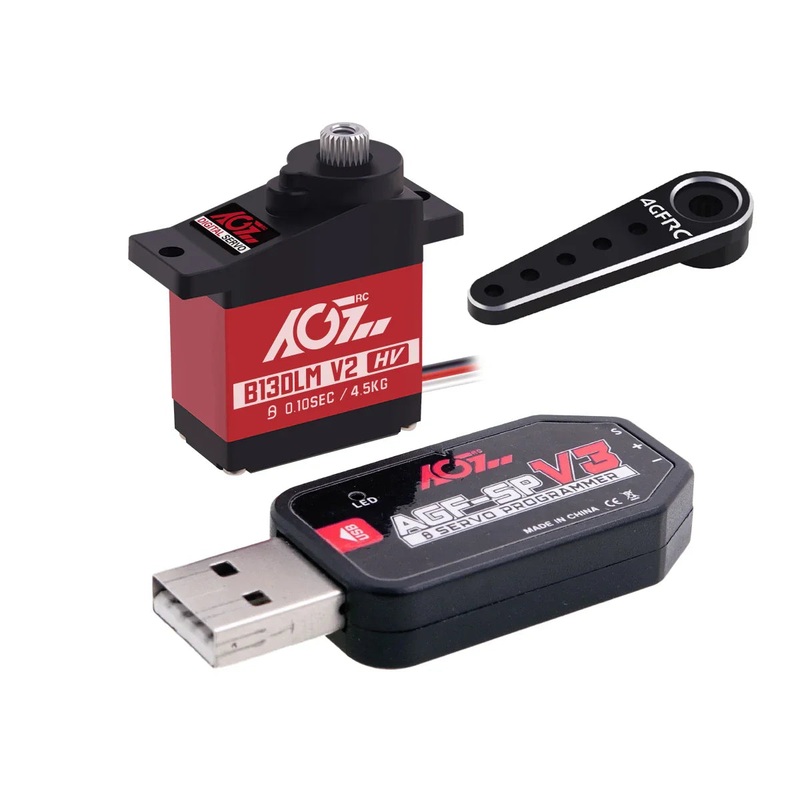

AGFRC B13DLM V2 4.5KG High Torque 13g Titanium Metal Gear 6.0V Digital Micro Servo for RC 1/28 RWD Mini Cars Helicopter Airplane

AGFRC B13DLM V2 servo. now it is the 2S 8.4V High Voltage programmable digital micro servo. designed in middle CNC aluminium case to ensure good dissipation. also strengthen the servo structure. Combine with double ball bearings. titanium gear and DC motor. to provide 4.5 kg-cm high torque at 8.4V. Light weight and small size make it suitable for most mini R/C models use. Support to program the servo parameter via our USB Programmer to meet different needs.

Feature

Plastic and Aluminum Case

High Precision Metal Gears

High Quality Brushed Motor

HV 2S High Voltage Compatible Micro Servo

High Performance Programmable Digital servo

Application: Ideal for 1/14. 1/16 Revo. 1/18. 1/24 Scale Crawler. Airplane. 450 Size Helicopter. Robot etc.

Specification

B13DLM V2

Operating Voltage: 4.8-8.4 V

Operating speed: 0.15sec/60 @ 4.8V

Operating speed: 0.13sec/60 @ 6.0V

Operating speed: 0.11sec/60 @ 7.4V

Operating speed: 0.10sec/60 @ 8.4V

Stall Torque: 3.0 kg-cm (41.66 oz-in) @ 4.8V

Stall Torque: 3.8 kg-cm (52.77 oz-in) @ 6.0V

Stall Torque: 4.2 kg-cm (58 oz-in) @ 7.4V

Stall Torque: 4.5 kg-cm (63 oz-in) @ 8.4V

Motor type: DC

Gear type: Titanium

Size: 22.8*12*29.4mm (0.89 x 0.47 x 1.15 in)

Weight: 16g

Connector Wire: JR 180mm / 26AWG

BIRDLM V2 sPECIFICATIONS SPECIFICA TIONS Operating Angle: 180*+100 8.4V 7.4V 6.0V 4.5 kg 3.8 kg 0.10sec/6o? 0.11sec/ 608 0.13 sec/6o ?

This digital micro servo features high torque with 4.5 kg-cm (63 oz-in) at 8.4V. has a response time of 1.520 s. and measures 22.8 x 12 x 29.4 mm. It includes double ball bearings for smooth mechanical operation and supports programmable voltage limits up to 8V. The operating wire length is JR-compatible (180mm) and uses 26 AWG wiring with no limit on the angle of rotation.

Product Specification: AGFRC B13DLM V2 Digital Micro Servo – Control System: Pulse Width Modulation (PWM) – Refresh Rate: 333 Hz – Neutral Position: 1.520 s – Signal Mode: Digital – Dead Band: 3 s – Operating Voltage: 4.8V to 8.4V – Operating Temperature Range: -15C to +70C

About AGFRC

Huizhou AGF-RC Electronic Technology Co..Ltd. is established in 2009. which is a high-tech enterprise owning more than 1200 square meters dust-free electronic manufacturing workshop. professional electronic R&D lab. SMT lines and high-precision CNC machines. Our technical team comes from Taiwan GWS and Guangdong Audi Toy. both are famous branded enterprises in RC industry. We have strong R&D ability and confidence to provide professional OEM/ODM RC solution for all clients.

Since 2009. AGFRC has been focus on all series of RC servos. speed controllers(ESC). receiver modules and car gyros. supplying high quality RC products and RC solutions for many domestic and abroad famous brands. We are attracting more talents to join us for diversified development in RC control area. including high-frequency circuit. structure and software design. aim to achieve industrial-leading level in the field of model control or even other applications.

AGFRC is our new brand and all the products are certified with CE. ROHS. FCC. Hereby we welcome domestic and abroad dealers and distributors to be our agent. promote AGFRC all over the world. AGFRC expects to establish long term win-win cooperation with you! We promise AGFRC will serve all clients with higher standard. better quality and superior service.

Huizhou AGF-RC Electronic Technology Co-.Ltd. is a high-tech enterprise owning more than 1200 square meters dust-free electronic manufacturing workshop . since 2009. AGFRC has been focus on all series of RC servos speed controllers(ESC) . receiver modules and car gyros . CERTIFICATE Reclclanat Ad:ttkoj are certified with CE. ROHS. FCC .

Important Shipping Notes: AGFRC does not guarantee delivery times for international shipments. as customs clearing times can vary by country. Buyers are responsible for any additional customs fees that may apply. Additionally. we offer a 1-month free replacement policy. which allows buyers to request a replacement within 15 days of receiving their product.

We offer premium quality services. including Original Equipment Manufacturer (OEM) and Original Design Manufacturer (ODM) options. Our expertise spans servo systems. high-frequency receivers above 4 GHz. years of experience with gyroscopes. ESCs. and Agfac products. including the A738HLW model.

Important Shipping Notes: AGFRC cannot guarantee delivery times for international shipments. as customs clearing times vary by country. Buyers are responsible for any additional customs fees that may apply. Additionally. we offer a one-month free replacement policy. allowing buyers to request a replacement within 15 days of receiving their product.
