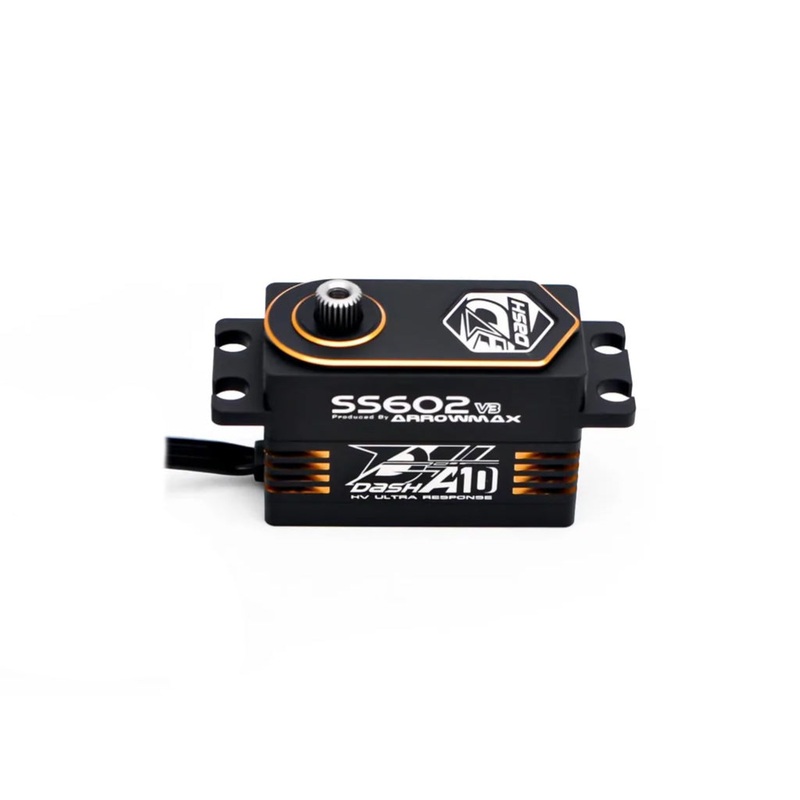

From Dash RC is this SS602 V3 HV A10 super speed low profile brushless servo. The PCB control board has been upgraded to 32-bit MCU on the SS602 servo and features an improved 303 steel teeth to prolong the lifespan. The high quality full-alloy metal case has masses of torque and is also very quick and precise in its resolution. The control inputs are now SSR/SUR/SXR mode compatible on the Sanwa, Digital/SR mode compatible on the Futaba, and SR/FSR compatible on the Flysky Noble controllers. It is a must for 1/10 on-road cars.
Features:
– SSR/SUR/SXR mode compatible for Super fast and smooth steering response
– High voltage compatible Servo
– All aluminium housing for excellent durability
– Heat resistant brushless motor
Specifications:
Aluminium Case (Upper, Middle, Bottom)
SSR/SUR/SXR modes of SANWA
Digital/SR mode of FUTABA and SR/FSR mode of NOBLE
Operating Voltage: 6.0~8.4V
Operating Temperature Range: -20 to =60Deg
Operating Speed: (6.0V): 0.067 sec
Operating Speed: (7.4.0V): 0.055 sec
Operating Speed: (8.4.0V): 0.045 sec
Torque(6.0V): 12.4kg-cm
Torque(7.4V): 16.0kg-cm
Torque(8.4V): 17.5kg-cm
Dimensions: 41*20*26
Weight: 52g
Bearing Type: Ball Bearing x 2
Working Frequency: 1520us/333hz
Spline: 25T
