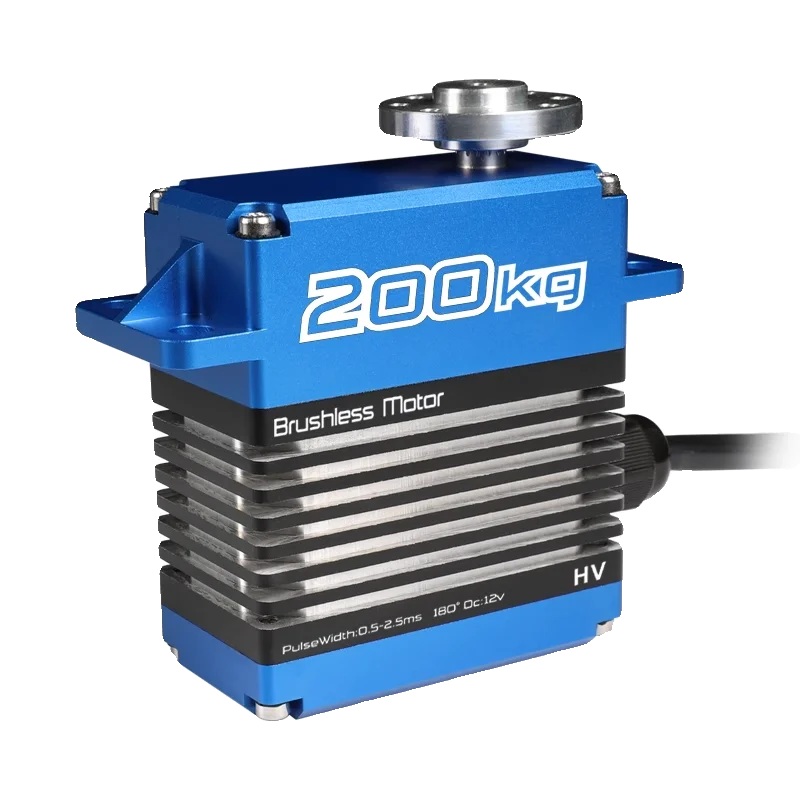

GXServo HS-1005SGT 200KG Servo – High-Performance Brushless Digital Servo
The GXServo HS-1005SGT 200KG Servo is a robust and high-torque servo engineered for UAVs. RC cars. drones. and robotic systems. Designed with a powerful brushless motor. CNC AL6061 aluminum casing. and all-metal gears. it ensures precision. strength. and reliability in demanding applications.
Product Highlights
- Torque Power: Capable of delivering up to 200KG.CM torque for heavy-duty tasks.
- Voltage Range: Operates seamlessly on 8.4V to 16.8V DC. providing flexibility across various systems.
- Speed Precision: Achieves exceptional speeds as low as 0.13 sec/60 at 16.8V.
- Durable Materials: Constructed with CNC AL6061 aluminum case and all-metal gears for maximum durability.
- Advanced Control: Supports 5002500 sec pulse width range and customizable rotation angles for precision control.
Specifications
| Parameter | Details |
|---|---|
| Operating Voltage | 8.416.8V DC |
| Standby Current | 200 mA |
| Locked Rotor Torque | 90KG.CM @ 8.4V |
| 130KG.CM @ 12.0V | |
| 150KG.CM @ 16.8V | |
| No-Load Speed | 0.19 sec/60 @ 8.4V |
| 0.16 sec/60 @ 12.0V | |
| 0.13 sec/60 @ 16.8V | |
| Rotating Direction | CCW (counterclockwise). CW (customizable) |
| Pulse Width Range | 5002500 sec |
| Neutral Position | 1500 sec |
| Travel Angle | 180 10 |
| Max Operating Angle | 358 10 |
| Mechanical Limit Angle | 360 |
| Dead Band Width | 3 sec |
| Operating Temperature | -20C to 60C |
| Storage Temperature | -20C to 60C |
| Weight | 365 0.5 g |
| Case Material | CNC AL6061 |
| Gear Material | All-metal |
| Reduction Ratio | 1:257 |
| Motor Type | Brushless Motor |
Key Advantages of GXServo HS-1005SGT 200KG Servo
- Extreme Torque: Handles loads up to 200KG.CM. making it suitable for high-pressure applications.
- Precision Manufacturing: CNC aluminum case and patented all-metal gears for reliable operation.
- Advanced Brushless Motor: Ensures long-lasting. high-performance operation with minimal wear.
- Slow Start Technology: Provides smooth. stable operation. reducing mechanical stress.
- Magnetic Encoding: Delivers superior accuracy and repeatability.
Applications
- UAVs and Fixed-Wing Aircraft: Reliable torque and precision for aerial stability.
- RC Cars and Drones: Supports high-speed. responsive movements for competitive performance.
- Robotic Arms: Ensures smooth handling and precise control for industrial or service robots.
- Helicopters: Perfect for applications requiring accurate and stable performance under load.
Package Includes
- 1 GXServo HS-1005SGT 200KG Servo
- Optional accessories available upon request.
Experience ultimate control and durability with the GXServo HS-1005SGT 200KG Servo. the ideal solution for high-performance applications.
GX Servo Product Specification:* Operating Voltage: 8.4-16.8V DC* Standby Current: <200mA (at 8.4V)* Locked Rotor Torque:+ 12.0V: 130kg.cm+ 16.8V: 150kg.cm+ 8.4V: <0.19sec/60* Unloaded Speed:+ 12.0V: <0.16sec/60+ 16.8V: <0.13sec/60* Rotating Direction: CW (500-2500us)* Neutral Position: +1500us* Operating Travel Angle: 180 (+10 at 500~2500us)* Maximum Operating Travel Angle: 358 (+10 at 500~2500us)* Mechanical Limit Angle: 360* Dead Band Width: <3us* Operating Temperature Range: -20C to +60C* Storage Temperature Range: -20C to +60C* Weight: 28g (0.5g)* Case Material: CNC Aluminum (6061)* Gear Set Material: Metal gear* Reduction Ratio: 1:257* Motor Type: Brushless motor
ALL-METAL High-Torque Brushless Servos for 200k Brushless Motors with 500Hz Hysteresis. HV Pulse Width Modulation. 500Hz. 1 Billion Dc: 12V. Pulse Width Modulation.
High Voltage 180 Motor (20ok) for Brushless Servo Application. Applicable Scope: 2500Hz Pulse Width Modulation with 5000Hz
GXServo product image. Explained With High Power Brushless Motor 180 Degree Operation. 12V Input. High Voltage. and Soldered PCB. Waterproof Rating: IP67.
Normal operation at low temperatures of 40C. Bosch-type fearless motor with high temperature resistance up to 100C.
Three bearings. AII steel. helical teeth. sealed with rubber o-rings and brushless motor. HV pulse width modulation. 0-100%. 18.000 RPM. 12V.
7 advantages of GXServo product features include CNC AI controlled slow start intelligent process. patented gear procedure. reinforced brushless motor with super torque and magnetic motor encoding.
Physical Display 200.000 Brushless Motor 18 degrees OC: 12V HV SOP-26S Zook Brushless Motor 18 degrees OC; 12V HV Pulse Width: SDOHs-25.5 Zook Brushless Motor Pulse Width: SOOS. 18 degrees OC; 12V
