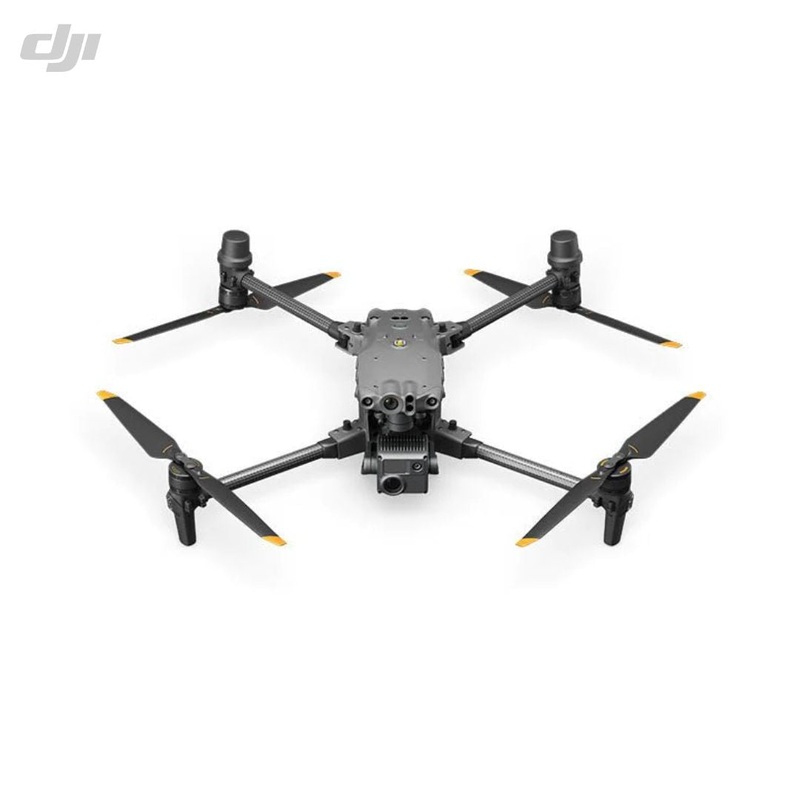

The DJI Matrice 30 is a lightweight, portable, and rugged commercial drone designed to deliver higher operational efficiency. It can fly for up to 41 minutes and can bear adverse environmental conditions with IP55 protection rating. It features a 48MP zoom camera, a 84 FOV wide-angle camera, and a laser rangefinder to provide superior image quality across variety of drone operations. It is also seamlessly compatible with the DJI Dock.
The Matrice 30 is a professional-grade drone that is designed for a variety of commercial applications, including security, inspections, search and rescue missions.
Specifications
Aircraft Details |
|
|
Dimensions: |
470585215 mm (unfolded, excl. propellers) 365215195 mm (folded) |
|
Weight: |
(incl. two batteries): 3780 g |
|
MTOW: |
4069 g |
|
Operation Frequency: |
2.4000-2.4835 GHz; 5.725-5.850 GHz |
|
Transmitter Power: |
(EIRP) 2.4 GHz |
|
Hovering Accuracy: |
Vertical 0.1 m (Vision System enabled); 0.5 m (N-mode with GPS); 0.1 m (RTK) Horizontal 0.3 m (Vision System enabled); 1.5 m (N-mode with GPS); 0.1 m (RTK) |
|
RTK Position Accuracy: |
1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical) |
|
Max. Angular Velocity: |
Pitch 150/sec Yaw 100/sec |
|
Max. Pitch Angle: |
35 (N-mode and Forward Vision System enabled: 25) |
|
Max. Ascent Speed: |
6 m/s |
|
Max. Descent Speed: |
5 m/s |
|
Max. Tilt Descent Speed: |
7 m/s |
|
Max. Horizontal Speed: |
23 m/s |
|
Max. Wind Resistance: |
12 m/s |
|
Max. Hover Time: |
36 minutes |
|
Max. Flight Time: |
41 minutes |
|
Motor Model: |
3511 |
|
Propeller Model: |
1671 | 1676 High Altitude (not included) |
|
GNSS: |
GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled) |
|
Operating Temperature: |
-20 to 50 C (-4 to 122 F) |
Accessories
Gimbal |
|
|
Angular Vibration Range: |
0.01 |
|
Controllable Range: |
Pan 90 Tilt -120 to +45 |
|
Mechanical Range: |
Pan 105 Tilt -135 to +60 Roll 45 |
Zoom Camera |
|
|
Sensor: |
1/2″ CMOS, Effective pixels 48M |
|
Lens: |
Focal length 21-75 mm (equivalent 113-405 mm) Aperture f/2.8-f/4.2 Focus 5 m to |
|
Exposure Compensation: |
3 ev (using 1/3 ev as step length) |
|
Electronic Shutter Speed: |
(Auto-Mode) Photo 1/8000-1/2 s Video 1/8000-1/30 s |
|
Electronic Shutter Speed: |
(Manual Mode) Photo 1/8000-8 s Video 1/8000 -1/30 s |
|
ISO Range: |
100-25600 |
|
Max. Resolution: |
38402160 |
|
Max. Photo Size: |
80006000 |
Wide Camera |
|
|
Sensor: |
1/2″ CMOS, Effective pixels 12M |
|
Lens: |
FOV 84 Focal length 4.5 mm (equivalent 24 mm) Aperture f/2.8 Focus 1 m to |
|
Exposure Compensation: |
3 ev (using 1/3 ev as step length) |
|
Electronic Shutter Speed: |
(Auto-Mode) Photo 1/8000-1/2 s Video 1/8000-1/30 s |
|
Electronic Shutter Speed: |
(Manual Mode) Photo 1/8000-8 s Video 1/8000-1/30 s |
|
ISO Range: |
100-25600 |
|
Max. Video Resolution: |
38402160 |
|
Photo Size: |
40003000 |
FPV Camera |
|
|
Resolution: |
19201080 |
|
DFOV: |
161 |
|
Frame Rate: |
30 fps |
Laser Module |
|
|
Wavelength: |
905 nm |
|
Max. Laser Power: |
3.5 mW |
|
Single Pulse Width: |
6 ns |
|
Measurement Accuracy: |
(0.2 m + D0.15%)D is the distance to a vertical surface |
|
Measuring Range: |
3-1,200 m (0.512 m vertical surface with 20% reflectivity) |
Vision Systems |
|
|
Obstacle Sensing Range: |
Forward 0.6-38 m Upward/Downward/Backward/Sideward 0.5-33 m |
|
FOV: |
65 (H), 50 (V) |
|
Operating Environment: |
Surfaces with clear patterns and adequate lighting (> 15 lux) |
Infrared Sensing Systems |
|
|
Obstacle Sensing Range: |
0.1 to 10 m |
|
FOV: |
30 |
|
Operating Environment: |
Large, diffuse, and reflective obstacles (reflectivity >10%) |
TB30 Intelligent Flight Battery |
|
|
Capacity: |
5880 mAh |
|
Voltage: |
26.1 V |
|
Battery Type: |
Li-ion 6S |
|
Energy: |
131.6 Wh |
|
Net Weight: |
Approx. 685 g |
|
Operating Temperature: |
-20 to 50 C (-4 to 122 F) |
|
Storage Temperature: |
20 to 30 C (68 to 86 F) |
|
Charging Temperature: |
-20 to 40 C (-4 to 104 F) |
|
Chemical System: |
LiNiMnCoO2 |
Auxiliary Lights |
|
|
Effective Illumination Distance: |
5m |
|
Illumination Type: |
60 Hz, solid glow |
Remote Controller |
|
|
Screen: |
7.02-inch LCD touchscreen, with a resolution of 19201200 pixels, and high brightness of 1200 cd/m2 |
|
Internal Battery: |
Li-ion (6500 mAh @ 7.2 V) Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V) Charge Time is 2 hours Chemical System is LiNiCoAIO2 |
|
External Battery: |
(WB37 Intelligent Battery): Capacity 4920 mAh Voltage 7.6 V Battery Type Li-ion Energy 37.39 Wh Chemical System LiCoO2 |
|
Operating Time: |
Approx. 3 hours 18 min (Internal Battery) Approx. 6 hours (Internal Battery + External Battery) |
|
Ingress Protection Rating: |
IP54 |
|
GNSS: |
GPS+Galileo+BeiDou |
|
Operating Temperature: |
-20 to 50 C (-4 to 122 F) |
O3 Enterprise |
|
|
Operating Frequency: |
2.4000-2.4835 GHz, 5.725-5.850 GHz |
|
Max. Transmission Distance: |
(Free of interference) 15 km (FCC); 8 km (CE/SRRC/MIC) |
|
Max. Transmission Distance: |
(With interference) 1.5-3 km (FCC/CE/SRRC/MIC) | Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/MIC) | Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/SRRC/MIC) |
|
Transmitter Power: |
(EIRP) 2.4 GHz |
BS30 Intelligent Battery Station |
|
|
Dimensions: |
(LxWxH): 353267148 mm |
|
Net Weight: |
3.95 kg |
|
Compatible Battery Type: |
TB30 Intelligent Flight Battery WB37 Intelligent Battery |
|
Input: |
100-240 VAC, 50/60 Hz |
|
Output: |
TB30 Battery Port 26.1 V, 8.9 A (supported up to two outputs simultaneously) WB37 Intelligent Battery 8.7 V, 6 A |
|
Output Power: |
525 W |
|
USB-C Port: |
Max. output power of 65 W |
|
USB-A Port: |
Max. output power of 10 W (5 V, 2 A) |
|
Power Consumption: |
(when not charging battery) < 8 W |
|
Output Power: |
(when warming up battery) Approx. 30 W |
|
Operating Temperature: |
-20 to 40 C (-4 to 104 F) |
|
Charging Time: |
Approx. 30 min (charging two TB30 batteries from 20% to 90%) Approx. 50 min (charging two TB30 batteries from 0% to 100%) |
In The Box
| Aircraft Body |
| BS30 Battery Station |
| Storage Case |
| DJI RC Plus |
