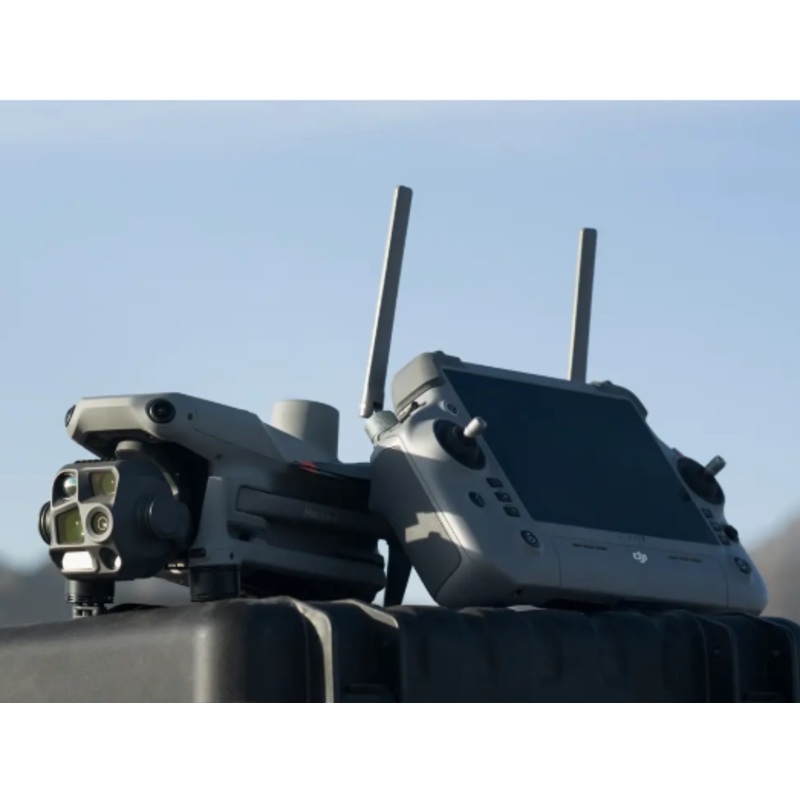

DJI RC Plus 2 Enterprise

DJI RC Plus 2 Enterprise Enhanced

DJI RC Plus 2 Enterprise is equipped with a new high-bright display, ensuring clear visibility even under strong sunlight. The controller has an IP54 protection rating and operates in temperatures from -20C to 50C (-4F to 122F). With the powerful O4 Enterprise video transmission, a built-in high-gain antenna array, and support for both SDR and 4G hybrid transmission, it provides a stable and smooth video feed in both urban and mountainous environments.

Designed for Matrice 4 series

Specs

OcuSync

Operating Frequency Range* : 5.150-5.250 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.1 GHz: <23 dBm (FCC/CE)

5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)

Wi-Fi

802.11 a/b/g/n/ac/ax

Operating Frequency Range*: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)

5.8 GHz 26 dBm (FCC/SRRC), 14 dBm (CE)

Bluetooth

Bluetooth 5.2

Working frequency: 2.4000-2.4835 GHz

Transmitter Power (EIRP): <10 dBm

General

Model: TKPL2

Battery Type: Li-ion (6500 mAh @ 7.2 V)

Chemical System: LiNiCoAlO2

It is recommended to use USB-C chargers with maximum rated power of 100W

Rated Power: 12.5 W

GNSS: GPS + Galileo + BeiDou

Video Output Port: HDMI Type-A

Operating Temperature: -4 to 122 F (-20 to 50 C)

Storage Temperature

Within one month: -22 to 113 F (-30 to 45 C)

One to three months: -22 to 95 F (-30 to 35 C)

Three months to one year: -22 to 86 F (-30 to 30 C)

Charging Temperature: 41 to 104 F (5 to 40 C)

* Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.
