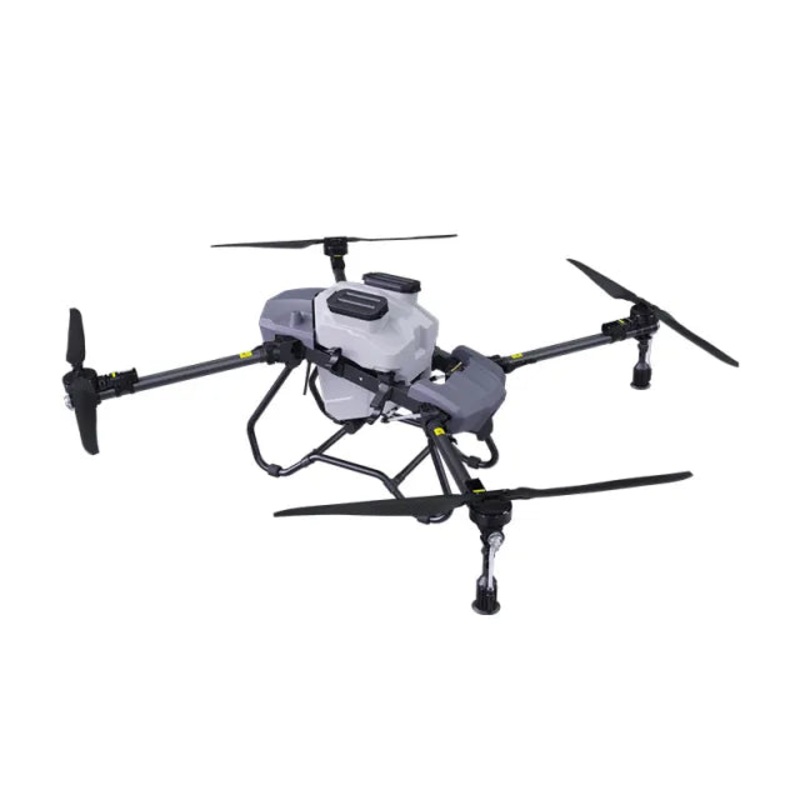

EFT Z30 Agriculture Drone
EFT just released the Z series heavy payload agriculture drones, 30kg capacity payload Z30 and 50kg capacity payload Z50 agriculture drones. The Z30/Z50 series agriculture drone adopts new truss structure with better strength and durability. Z-shaped folding structure makes it small in folded size, easy to transport.
The flight controller system adopts group modular design, convenient to install without cumbersome wiring.With ultrasonic flow-meter, high precision weighing module and other parts,you can get the real-time disply of remaining liquid information. Original creation of water-cooled centrifugal nozzle effectively reduce the working temperature, extend the working life. The waterproof level of the whole drone reaches IP67, the EFT Z30 and Z50 can be widely used in various fields.
Package Included:
Basic Set:
Z30 Agriculture drone frame kit x 1
Power system x 4
Water pump x 2
Flow meter x 1
Level Gauge x1
Centrifugal nozzle x 2
Adapter Boardx 1
Pipes andFittings x 1
Flight controller x 1
Receiver module x 1
Camera x 1
Remote Controlx 1
StandardSet:
Z30 Agriculture drone frame kit x 1
Power system x 4
Water pump x 2
Flow meter x 1
Level Gauge x1
Centrifugal nozzle x 2
Adapter Boardx 1
Pipes and Mittings x 1
Flight controller x 1
Receiver module x 1
Camera x 1
Remote Controlx 1
RTK module x 1
Forward Rader x1
Rear obstacle radar x 1
Altituderadar x 1
Drone System: Z30
Unloaded Spraying drone weight (without batteries): 29.8kg
Unloaded Spraying drone weight(with batteries): 40kg
Unloaded Spreading drone weight (without battery) : 30.5kg
Unloaded Spreading drone weight(without battery)40.7kg
Max Take-off weight: 70kg
( The weight parameters vary by 1kg according to the final product configuration.)
Wheelbase: 2025mm
Expand Size
Spraying drone2435*2541*752mm
Spreading drone2435*2541*774mm
Folded size
Spraying drone979*684*752mm
Spreading drone979*684*774mm
No-load hovering time: 17.5minTest by14S 30000mah
Full load hovering time: 7.5minTest by 14S 30000mah
Working temperature0-40
SPRAYING SYSTEM
Spaying tank30L
Water PumpVolt12-18S Power30W*2 Max flow8L/min*2
NozzleVollt12-18S Power500W*2 Atomized particle size50-500m
Spray width4-8m
SPREADING SYSTEM
Spreading tank50L
Max load30kg
Applicable granule0.5-6mm dry solids
Spread width8-12m
MOTOR SYSTEM
Model11115
Volt14S
KV95kv
Maximum power7350W
Constant powerConstant Power
Propeller size43inch
FLIGHT CONTROL
Operating Voltage12-80V
Working temperature-10~60
RTKHorizontal 0.1mVertical 0.1m
GPSHorizontal 1.5mVertical 0.5m
Wind resistance levelSustained windlevel 4Gustlevel 5
REMOTE CONTROL
Resolution1080*1920
display screen5.5inch
Working time12h
Charging time5h20W
Control distance3km(3mHeight without shelter)
Weight850g
RECOMMENDED BATTERY
Volt: 14S
Capacity: 30000mah
Weight: 10kg
| Parameters | FZ30 | FZ50 |
| Empty weight
(without batteries) |
29.8kg | 31.5kg |
| Empty weight
(including battery) |
40kg | 45kg |
| Empty spreader weight
(without batteries) |
30.5kg | 32.5kg |
| Empty spreader weight
(with batteries) |
40.7kg | 46kg |
| maximum take-off weight | 70kg | 95kg |
| (Note: The weight parameter has a fluctuation of 1kg according to the actual product selection and process error) | ||
| wheelbase | 2025mm | 2272mm |
| Expand Size | Spraying2435*2541*752mm
Spreading2435*2541*774mm |
Spraying2845*2718*830mm
Spreading2845*2718*890mm |
| folded size | Spraying979*684*752mm
Spreading979*684*774mm |
Spraying1066*677*830mm
Spreading1066*677*890mm |
| no-load hovering time | 17.5min14S 30000mah Battery | 20min18S 30000mah Battery |
| full load hovering time | 7.5min 14S 30000mah Battery | 7min18S 30000mah Battery |
| Working temperature | 0-40 | |
| Spraying system | ||
| Medicine box capacity | 30L | 50Lsuggest loading 45L |
| Pump parameters | Voltage: 12-18S Power: 30W Maximum flow: 8L/min*2 | |
| Nozzle parameters | Voltage: 12-18S Power: 500W Atomized particle size: 50-500m | |
| Effective spray width | 4-8m | |
| Spreading system | ||
| Tank capacity | 50L | 70L |
| Maximum load | 30kg | 50kg |
| Applicable materials | 0.5-6mmdry solids | |
| Effective broadcast width | 8-12m | |
| Motor system | ||
| motor model | 11115 | 11122 |
| supply voltage | 14S | 18S |
| KV | 95kv | 60kv |
| Motor maximum power | 7350W | 9730W |
| Motor continuous power | 2600w | 3100w |
| propeller size | 43inch | 48inch |
| FC system | ||
| Operating Voltage | 12-80V | |
| Working temperature | -10~60 | |
| RTK positioning accuracy | Horizontal 0.1m, vertical 0.1m | |
| GPS positioning accuracy | Horizontal 1.5m, vertical 0.5m | |
| Wind resistance level | Sustained wind: level 4, gust: level 5 | |
| RC | ||
| resolution | 1080*1920 | |
| display screen | 5.5inch | |
| battery life | 12h | |
| charging time | 5h20W | |
| remote control distance | 3km3mHighly unobstructed | |
| Weight | 850g | |
| Recommended battery | ||
| Voltage | 14S | 18S |
| capacity | 30000mah | 30000mah |
| weight | 10kg | 13.5kg |
EFT Z30 Agriculture Drone User Manual PDF
EFT Z30 Agriculture Drone Assembly Instruction Manual PDF
Note:
1.Only the standard version comes with RTK Module and radars.
2. Battery for the drone is not included. The whole package is not assembled and tuned, customers need to assemble and tune the settings.
Main Features:
EFT Z30/Z50 Agriculture drone frame adopts a new truss structure with better strength and durability.
Z-shaped folding structure–Small folding size, more convenient to transport.
The newly upgraded arm locking structure is easy to operate, firm and reliable.
Super large bilateral liquid inlet–Adding pesticides is smoother, and the liquid does not leak.
Snap-in fuselage–Tool-free disassembly.
High front and low tail design, the flight resistance is smaller.
With ultrasonic flow-meter,the sensor and liquid medicine are separated and detected.
High-precision weighing module, real-time display of remaining liquid information.
Early warning of failure information.
Group modular design of flight control system.Convenient installation without cumbersome wiring
Newly Upgraded Spraying System
Equipped with bilateral large diameter impeller pump
With ultrasonic flow-meter,the sensor and liquid medicine are separated and detected.No fear of corrosion, stable and reliable.
Original creation water-cooled centrifugal nozzle, which effectively reduce the working temperature, extend the working life. Delicate droplet particles and large atomization radius.
Precise Spreading
Integrated liquid container assembly can change to spreading system quickly. Simple and efficient operation, large feeding port, double the feeding efficiency,
The bow-shaped tripod design can effectively avoid the collision of the broadcasting particles, and the weight of the remaining material can be detected to achieve precise broadcasting.
The waterproof level of the whole drone reaches IP67.
The whole machine is upgraded waterproof from the inside to the outside, the main board of the power supply is potted as a whole, the plug is replaced with a waterproof terminal, and the core module is independently waterproof.
Same structure, convenient maintenance
The Z30 and Z50 adopt the same platform architecture design, more than 95% of the parts are the same, and the spare parts are easier to prepare. Greatly reduce maintenance costs and improve production efficiency.
