Overview

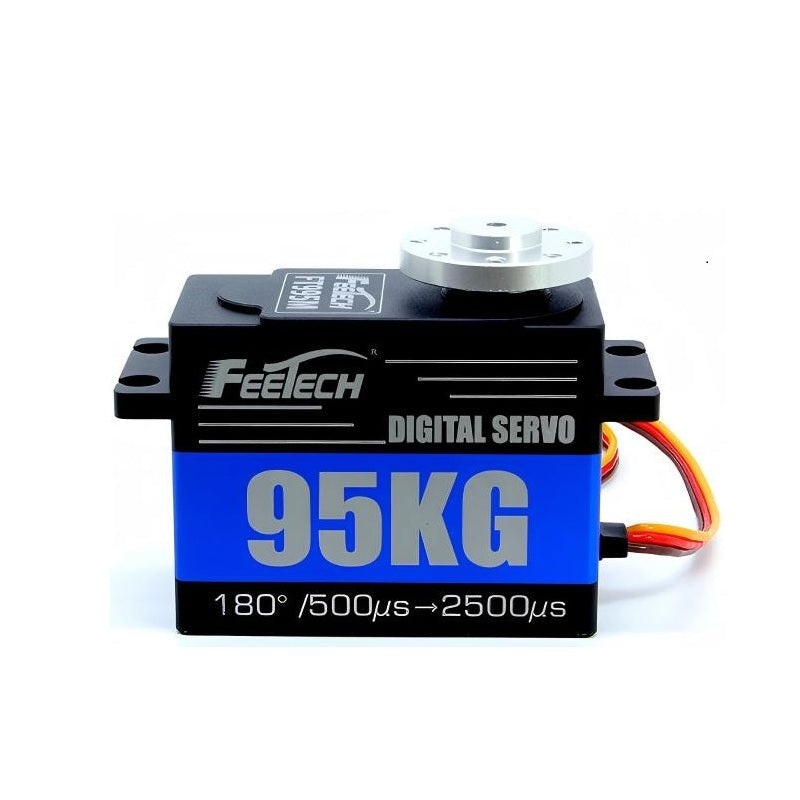

The FEETECH FT995M Servo Motor (model FT-995M-C001) is a high-torque, 180-degree digital servo designed for robotics and motion control. It features steel gears, an aluminum case, and ball bearings for durability. Operating on PWM control (pulse width modulation) across 6-9V, it delivers peak stall torque of 95kg.cm at 7.4V and 105kg.cm at 8.4V, with a control range of 1805 at 5002500 sec. A 15T/7.6mm horn gear spline, 1/399 gear ratio, and precise 4 sec dead band support accurate positioning for applications such as humanoid robots, robotic arms, exoskeletons, quadrupeds, AGV vehicles, and ARU robots.
Key Features
- High torque: [email protected] / [email protected] peak stall torque
- Control range: 1805 at 5002500 sec; stop position 1500 sec
- Steel gear train, aluminum case, ball bearings
- PWM control with digital comparator; 4 sec dead band
- No-load speed: 0.268sec/60 (40RPM) @7.4V
- Operating voltage range: 6-9V; stall current [email protected]
- Horn gear spline: 15T/7.6mm; gear ratio 1/399
- Dimensions: A 65mm, B 30mm, C 48mm; weight 187.5g 1g
- Operating temperature: -2060; storage: -3080
- Connector wire length: 300.5CM
Specifications
| Parameter | Value |
|---|---|
| Model | FT-995M-C001 |
| Product Name | 7.4V 95KG 180 Degree Servo |
| Storage Temperature Range | -3080 |
| Operating Temperature Range | -2060 |
| Size | A65mm B30mm C: 48mm |
| Weight | 187.5g 1g |
| Gear type | Steel |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 15T/7.6mm |
| Gear Ratio | 1/399 |
| Case | Aluminum |
| Connector wire | 300.5CM |
| Motor | Core Motor |
| Operating Voltage Range | 6-9V |
| Idle current(at stopped) | [email protected] |
| No load speed | 0.268sec/60(40RPM)@7.4V |
| Runnig current(at no load) | [email protected] |
| Peak stall torque | [email protected] / [email protected] |
| Rated torque | [email protected] |
| Stall current | [email protected] |
| Command si gnal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 sec |
| Stop position | 1500 sec |
| Running degree | 1805(at 5002500sec) |
| Dead band width | 4 sec |
| Rotating direction | Counterclockwise (15002500 sec) |
Applications
- Humanoid Robots
- Robotic Arms
- Exoskeletons
- Quadruped Robots
- AGV Vehicles
- ARU Robots
Manuals
- FT-995M-C001-PRODUCT_SPECIFICATION.pdf
- FT-995M-C001_Product_structure_diagram.pdf
