Overview
The Flashhobby FH-8015 Micro Servo is a PWM-controlled micro servo for compact RC and hobby motion-control applications. It uses analog control with an IC drive, a coreless motor, and a potentiometer feedback system, supporting 4.8V6.0V operation.
Key Features
- Control system: Pulse Width Modulation (PWM) control
- Analog control amplifier with IC drive
- Coreless motor
- Rated travel and extended limit angle support (see Specifications)
- Cycle life: >120000 times
Specifications
| Model | FH-8015 |
| Type | Micro Servo |
| Control System | Pulse Width Modulation (PWM) Control |
| Operation Voltage Range | 4.8V ~ 6.0V |
| Operation Temperature Range | -10C ~ +50C |
| Cycle Life | >120000 times |
| Operation Travel | 120 10 |
| Limit Angle | 180 10 |
| Direction / Pulse Travel | Re-clock wise / 800 2000 sec |
| Driver Type | IC Drive |
| Motor Type | Coreless |
| Potentiometer Type | Potentiometer |
| Amplifier Type | Analog Control |
| Dimensions (listed) | 22.8 * 11.5 * 20.8 mm |
| Weight | 7 0.5 g (without servo horn) |
| Drawing Dimensions | 22.80 mm (length); 11.50 mm (width); 28.60 mm (height); 27.60 mm and 31.63 mm (side drawing lengths); 2-2.00 mounting holes |
Whats Included
- Flashhobby FH-8015 Micro Servo
- Servo horn set
- Screws
Applications
- Model aircraft
- Robotics
- RC cars
- RC boats
- Small toy drone projects
Notes
- Additional source-listed values: Working Temperature Range -0C ~ +80C; PWM adjustment range 900 ~ 2100 us.
For product support and setup questions, contact [email protected] or visit https://rcdrone.top/.
Details
The FH-8015 micro servo uses a compact case with 2.0 mm mounting holes and a roughly 31.63 x 28.6 x 11.5 mm footprint for easy fitment.

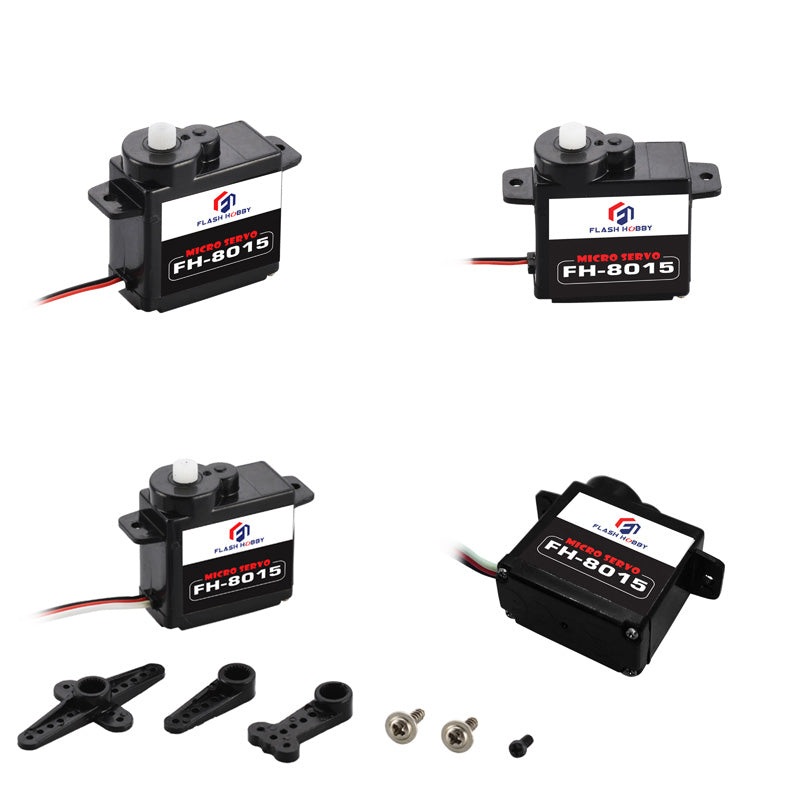

The Flashhobby FH-8015 micro servo includes mounting tabs, a 3-wire lead, and a set of servo horns with screws for installation.
