Description

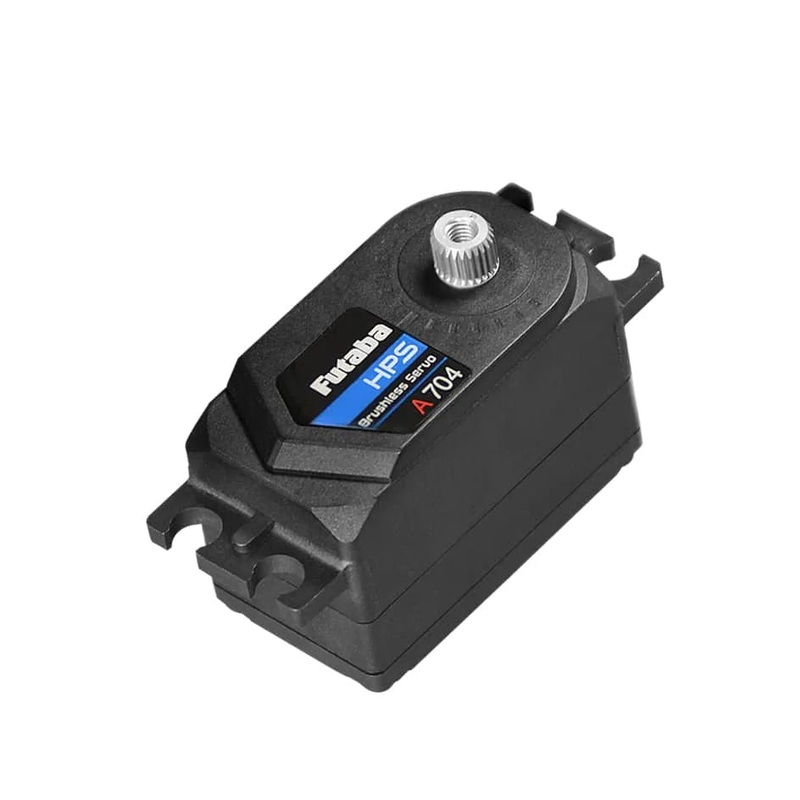

HPS-A704 S.Bus2 High-Voltage Standard Airplane Servo

High Performance Servo with Brushless Motor (01102388-3)

FEATURES:
For F3A airplanes.
Programmable/High performance Brushless Servo.
Custom New high speed Brushless Motor.
Designed with F3A in mind
Programmable and compatible with S.Bus and S.Bus2 systems.
Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
Final gear material is metal.
Upper/middle/bottom: Plastic case

SPEED:
0.07 sec/60at 6.6V
0.06 sec/60 at 7.4V

TORQUE:
12.5 kgf/cm at 6.6V
173.6 ozf/in at 6.6V
14.0 kgf/cm at 7.4V
194.4 ozf/in at 7.4V

SIZE:
40.5 mm x 21 mm x 26.9 mm
1.59 in x 0.83 in x 1.06 in

WEIGHT:
48 g
1.69 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY OR BEC USE
