Overview

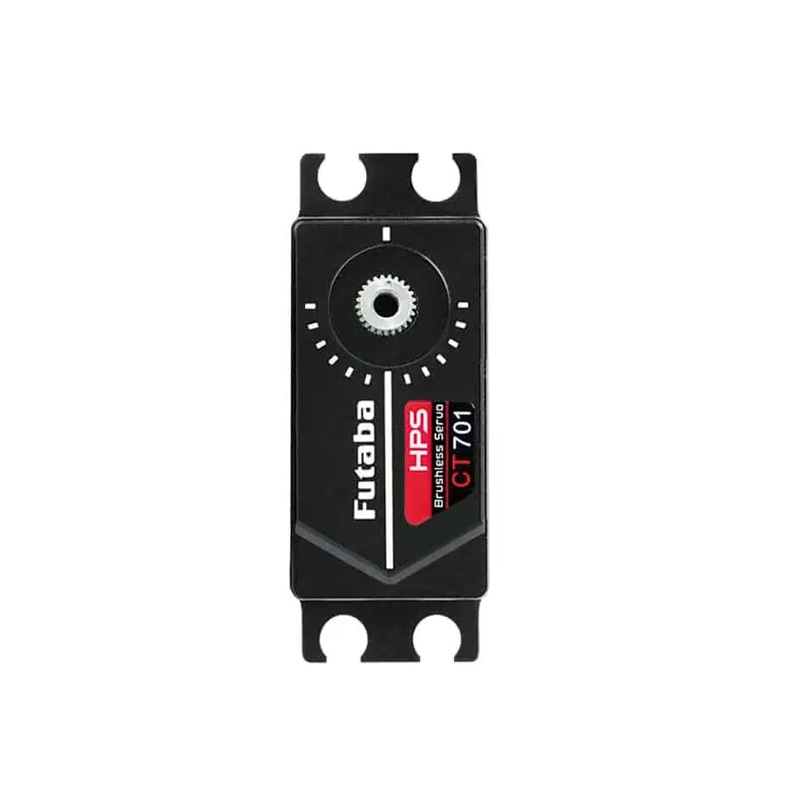

The Futaba HPS-CT701 is a high-performance low-profile servo engineered for 1/10 scale on-road. off-road. and drift RC cars. With a maximum torque of 30.0 kgfcm at 7.4V and lightning-fast 0.07 sec/60 response. it combines top-tier speed and power in a compact aluminum case. The HPS-CT701 features a programmable high-voltage brushless motor. supports S.Bus2/S.Bus protocols. and offers advanced SR mode compatibility for precise control under extreme racing conditions.
Not compatible with BEC or dry batteries. Designed for RC vehicles smaller than 1/5 scale.
Key Features
-
Low-profile design for tight installation spaces in 1/10 RC cars
-
Blazing fast response: 0.07 sec/60 at 7.4V
-
30.0 kgfcm torque at 7.4V for powerful steering under load
-
S.Bus & S.Bus2 compatible. fully programmable
-
Supports SR mode on T4PM. T7PX. T10PX transmitters
-
Built with a durable all-aluminum case (upper/middle/lower)
-
Programmable via PC using CIU-2/CIU-3 (sold separately)
Technical Specifications
| Parameter | Value |
|---|---|
| Speed (6.0V) | 0.08 sec/60 |
| Speed (7.4V) | 0.07 sec/60 |
| Torque (6.0V) | 23.0 kgfcm / 319.4 ozfin |
| Torque (7.4V) | 30.0 kgfcm / 416.6 ozfin |
| Rated Voltage | DC 6.0V 7.4V |
| Operating Voltage | DC 4.8V 8.4V |
| Dimensions | 40.5 x 21.0 x 26.2 mm |
| Weight | 54 g / 1.90 oz |
| Case Material | Aluminum (Top / Middle / Bottom) |
| Compatibility | S.Bus / S.Bus2 |
