Description

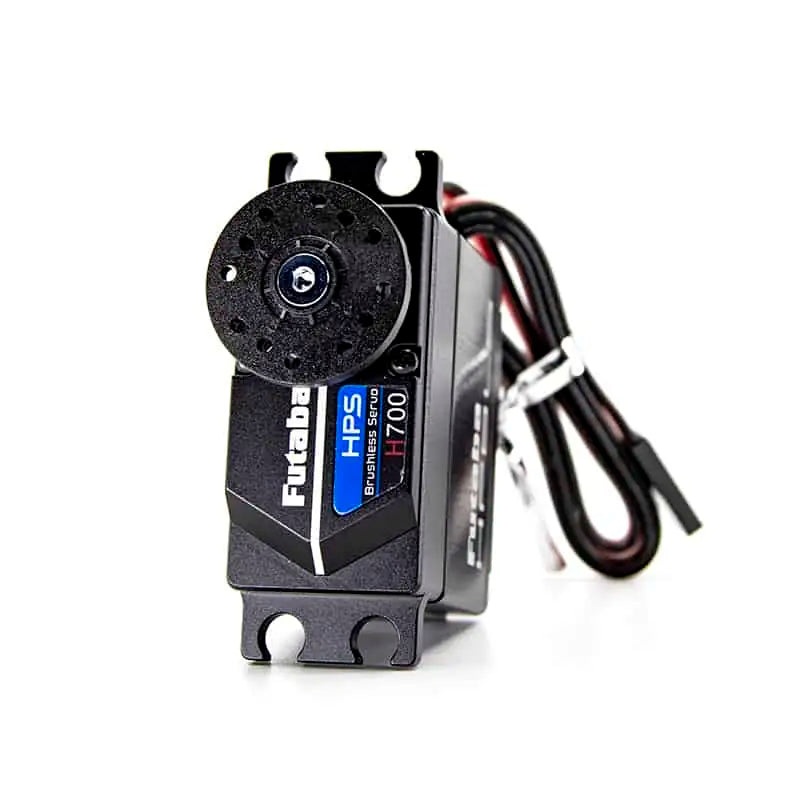

HPS-H700 S.Bus2 High-Voltage Standard Helicopter Servo

High Performance Servo with Brushless Motor (Neutral Pulse Width: Default 1520s. optional 760s) (01102312-3)

FEATURES:
Suitable for all purpose RC helicopters.
Programmable/HV Brushless Servo.
Custom New high power Brushless Motor.
Programmable and compatible with S.Bus and S.Bus2 systems.
Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
Upper/middle/bottom: Aluminum Case
2S LiPo Suitable

SPEED:
0.075 sec/60at 6.6V
0.07 sec/60 at 7.4V

TORQUE:
41.0 kgf/cm at 6.6V
569.4 ozf/in at 6.6V
44.0 kgf/cm at 7.4V
511.1 ozf/in at 7.4V

SIZE:
40.5 mm x 21 mm x 37.8 mm
1.59 in x 0.83 in x 1.49 in

WEIGHT:
76 g
2.68 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY OR BEC USE
