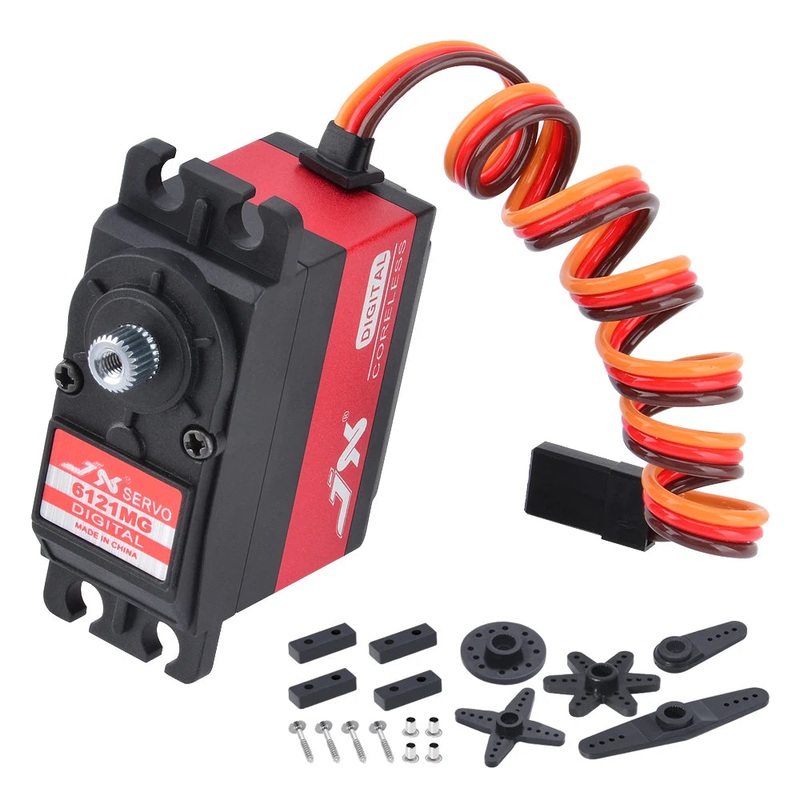

JX Servo PDI-6121MG – 6V 21KG Servo SPECIFICATIONS

Brand Name: JX

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: Servos

Size: 40.5X20.5X40mm

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Servos

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembled class

Technical parameters: Value 5

Model Number: PDI-6121MG

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

Gear Teeth: 25T

Control Angle: 120 Degree

Factory supply Huge stocks, Support wholesale

FEATURE:
— High performance digital coreless standard servo
— High-precision Taiwan-made aluminium gears with hard anodizing
— CNC aluminium middle Shel
— Dual ball bearings

SPECIFICATIONS:
Dead band: 1s
Working frequence: 1520s / 330hz
Motor: coreless motor
Operating Speed (4.8V): 0.152sec/60
Operating Speed (6V): 0.131sec/60
Stall Torque (4.8V): 17.21 kg.cm (239.03oz/in)
Stall Torque (6V): 21.06kg.cm (292.46oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 61 g (2.15oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Tooth Count25
