JX Servo PDI-6221MG SPECIFICATIONS

Brand Name: JX Servo

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Servos

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Certification: CE

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembly Category

Technical parameters: Value 6

Model Number: PDI-6221MG

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

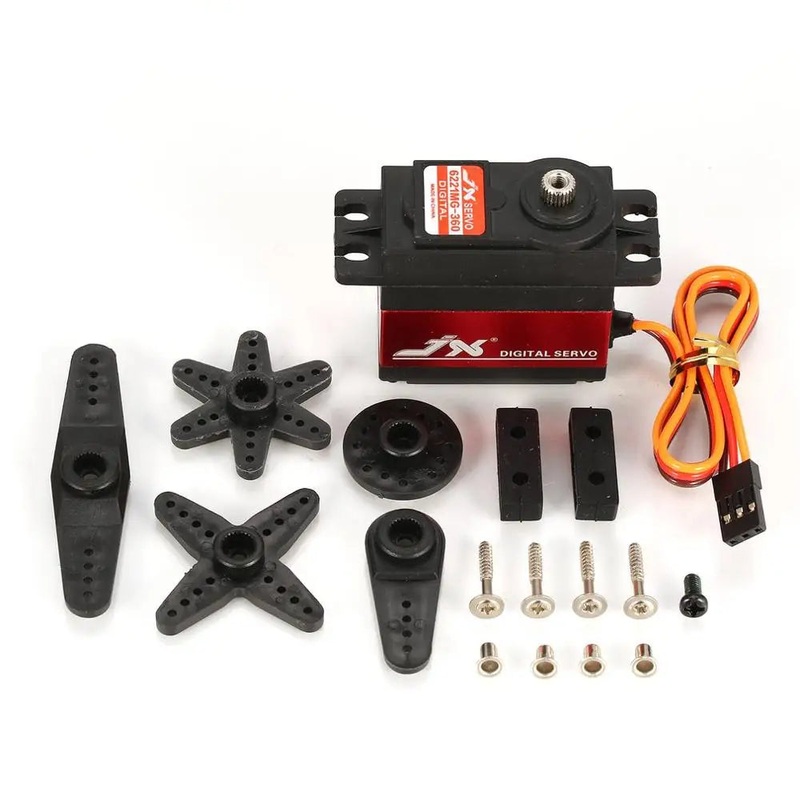

JX 20KG Servo PDI-6221MG 180 360 Large Torque Digital Aluminium Metal Gear 25T Arm for RC Car Model Toy Crawler Boat Airplane

Features:
— High performance digital standard servo
— High-precision Taiwan-made aluminium gears with hard anodizing
— CNC aluminium middle Shelf
— Dual ball bearings

Specifications:
Model:PDI-6221MG
Dead -band: 2s
Working frequence: 1520s / 330hz
Operating Speed (4.8V): 0.18 sec/60
Operating Speed (6V): 0.16 sec/60
Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
Stall Torque (6V): 20.32 kg-cm (281.89 oz/in)
Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 62g (2.18oz)
Steering angle: 0-120 degree
Connector Wire Length: JR 260mm
Bearing: 2BB
Usage: For RC Models

Model:PDI-6221MG-180

Brand: JXMax Angle:180Pulse width:1000-2000s=90Pulse width:500-2500s=180Dead band: 2s 1520s / 330hz Operating Speed (4.8V): 0.18 sec/60Operating Speed (6V): 0.16 sec/60Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)Stall Torque (6V): 20.32 kg.cm (281.89 oz/in)Connector Wire Length: JR 265 mm (10.43in)Suit for 1/10 1/8 RC Car BoatBearing: 2BBDimensions: 40.5X20.2X38mm /1.59 X0.80X49 inWeight:62g

Model:PDI-6221MG-360

Dead band: 2s

Working frequence: 1520s / 330hz

Operating Speed (4.8V): 0.09 sec/60

Operating Speed (6V): 0.07 sec/60

Stall Torque (4.8V): 6.8 kg/cm

Stall Torque (6V): 8.2 kg/cm

Dimensions: 40.5X20.2X38mm

Metal Teeth:25T

Control Angel:120 Degree

Weight: 62 g

Connector Wire Length: JR 265 mm

Wire/Color:JR 265 mm/ -Brown +Red S Orange

Bearing: 2BB

Use: Vehicles & Remote Control Toys

Rc parts & accs: Servos

For vehicle type: Cars

Noted:
1.Please allow 1-2mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
