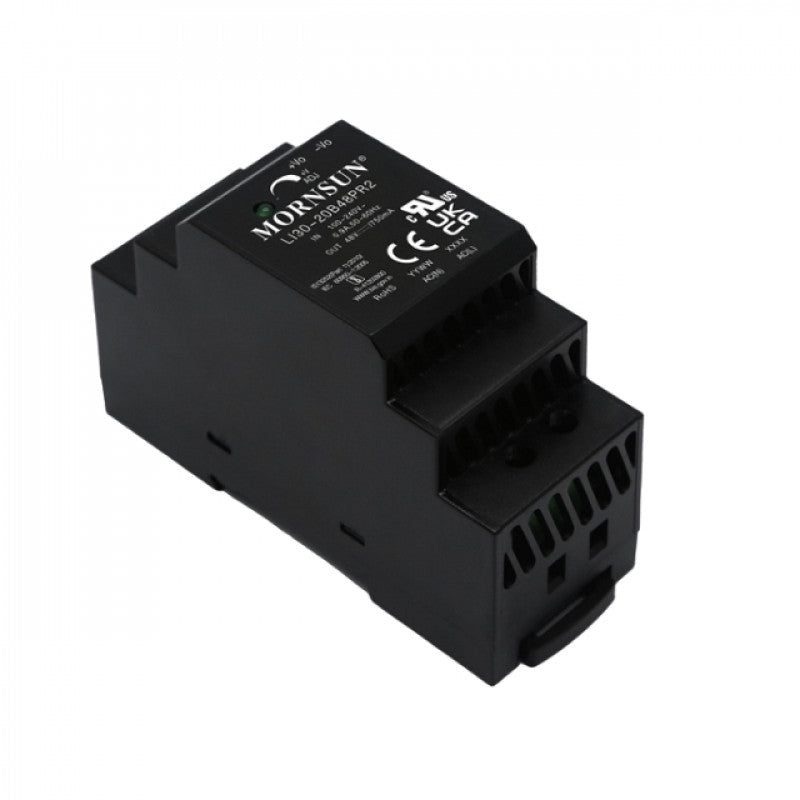

Mornsun LI30-20B48PR2 AC/DC 30W DIN-Rail Power Supply

Mornsun LI30-20B48PR2 AC/DC 30W DIN-Rail Power Supply

The LI30-20B48PR2 is a cost-effective and energy-efficient AC/DC power supply with 48VDC output. It has an extremely compact design that saves space on your DIN-Rail and is ideal for applications like industrial control and building automation.

Features:

• Compact design
• Energy-efficient
• Standard DIN-Rail mounting
• 48VDC output
• Wide input voltage range (85-264VAC or 120-370VDC)
• High current output (0.75A)
• High isolation voltage (4000VAC)
• Overvoltage, undervoltage, overcurrent, and overload protection

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company’s corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed intothe final equipment. All EMC tests should be confirmed with the final equipment
