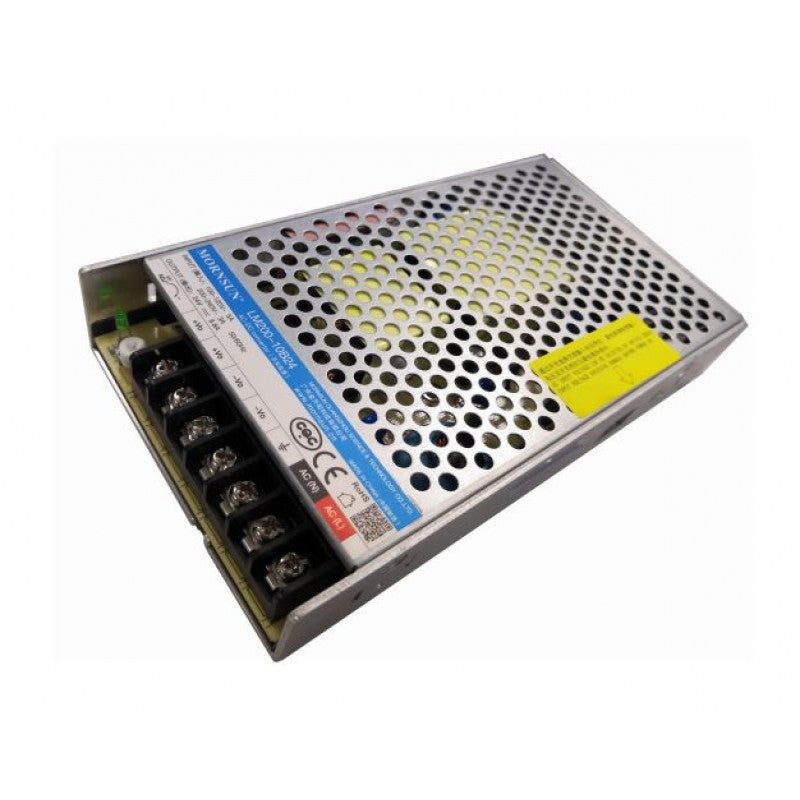

Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply

Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply

The LM200-10B36 is an enclosed AC-DC switching power supply from Mornsun. It features a selectable AC input, DC input voltage acceptance, cost-effectiveness, low no load power consumption, high efficiency, and high reliability. It offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.

Features

• Selectable AC input: The LM200-10B36 can be powered by a wide range of AC input voltages, from 90 to 264 VAC.
• DC input voltage acceptance: The LM200-10B36 can also be powered by a DC input voltage, from 240 to 373 VDC.
• Cost-effective: The LM200-10B36 is a cost-effective solution for a wide range of applications.
• Low no load power consumption: The LM200-10B36 consumes very little power when it is not in use, which can help to save energy costs.
• High efficiency: The LM200-10B36 is highly efficient, which can help to reduce energy costs and extend the life of the product.
• High reliability: The LM200-10B36 is designed to be highly reliable, and it is backed by a one-year warranty.

If you are looking for an enclosed AC-DC switching power supply with a wide range of features and benefits, the LM200-10B36 is a great option.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company’s corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed intothe final equipment. All EMC tests should be confirmed with the final equipment
