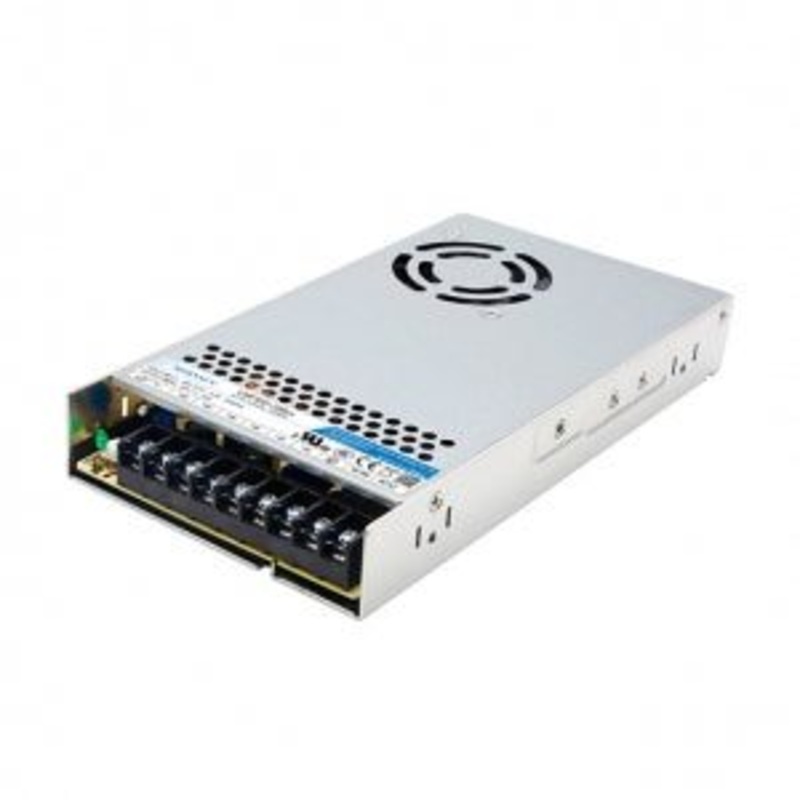

Mornsun LMF320-23B24 AC/DC 320W Enclosed Switching Power Supply

Mornsun LMF320-23B24 AC/DC 320W Enclosed Switching Power Supply

The LMF320-23B24 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input range of 85-305VAC, a DC input voltage range of 120-430VDC, an output voltage of 24VDC, an output current of 13.4A, and an efficiency of up to 88.5%. The LMF320-23B24 also has a built-in active PFC function, which helps to improve power factor and reduce energy consumption.

The LMF320-23B24 is a cost-effective and reliable power supply that is suitable for a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features:

• Universal AC input range of 85-305VAC
• DC input voltage range of 120-430VDC
• Output voltage of 24VDC
• Output current of 13.4A
• Efficiency of up to 88.5%
• Built-in active PFC function
• High reliability
• Cost-effective

check out :Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company’s corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed intothe final equipment. All EMC tests should be confirmed with the final equipment
