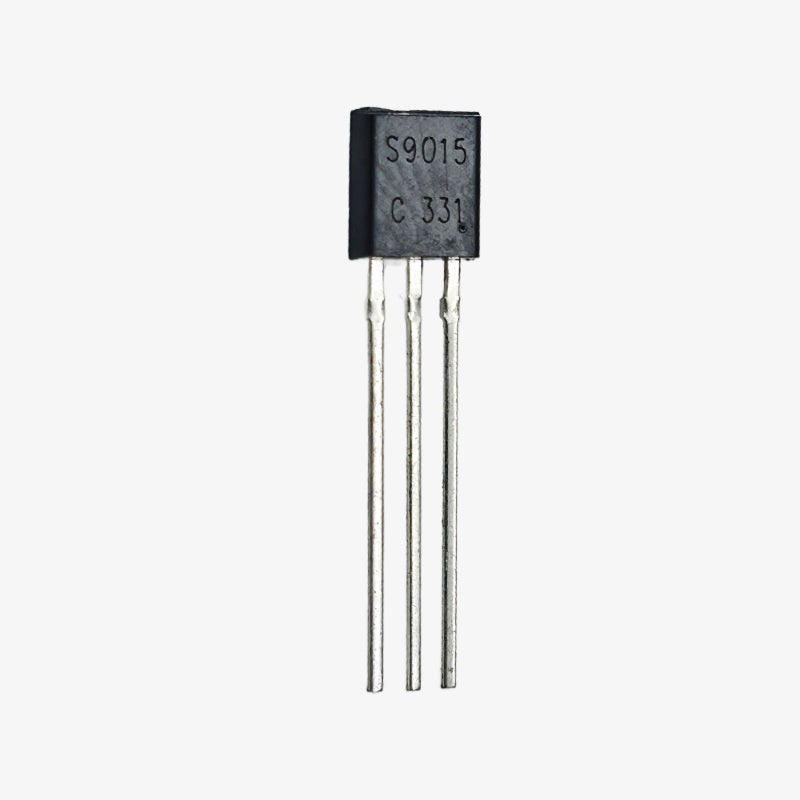

S9015 100mA PNP Transistor – TO-92 DIP Package

The S9015 is a low-power PNP transistor designed for general-purpose amplification and switching applications. With a maximum collector current of 0.1A, it is well-suited for signal amplification, low-current switching, and control circuits. Commonly used in audio devices, small-signal processing, and consumer electronics, the S9015 provides reliable performance in a compact TO-92 through-hole package, ensuring easy integration into breadboards and PCB assemblies.

Features:

1. Low-power PNP transistor for signal amplification and switching
2. Suitable for audio circuits and low-current control applications
3. Stable electrical characteristics with low noise
4. Compact TO-92 package for easy soldering and PCB mounting
5. Ideal for hobby electronics and small consumer devices

Specifications:

• Type: PNP
• Collector-Emitter Voltage (Vceo): 45V
• Collector-Base Voltage (Vcbo): 50V
• Emitter-Base Voltage (Vebo): 5V
• Collector Current (Ic): 100mA (max)
• DC Current Gain (hFE): 120 400 (typical)
• Package: TO-92 through-hole
• Pin Configuration: Emitter, Collector, Base
• Operating Temperature: -55C to +150C

Package Includes:

1 S9015 100mA PNP Transistor – TO-92 DIP Package
