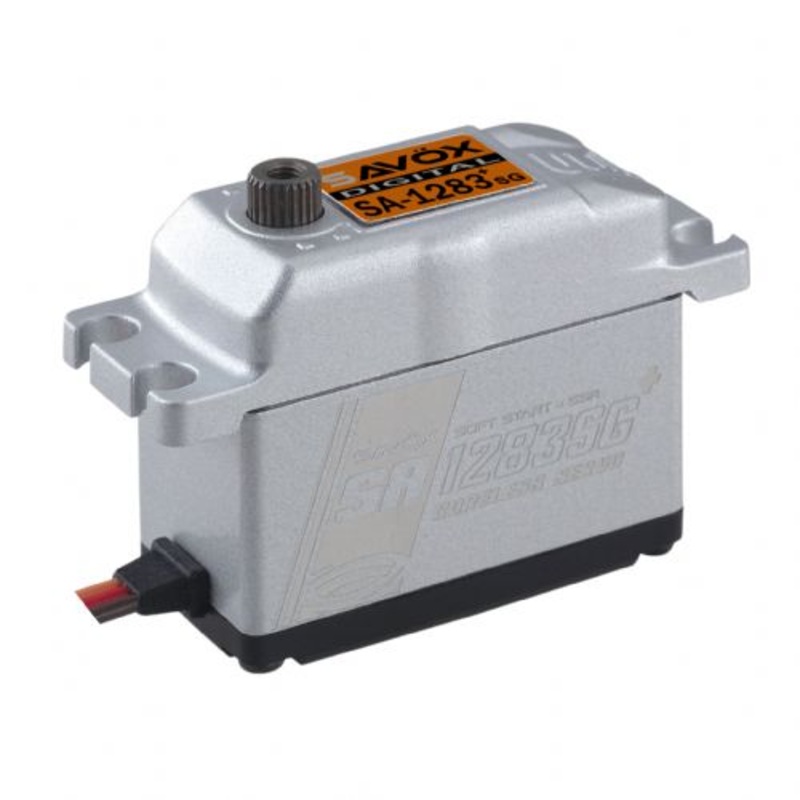

SA-1283SG Plus combines cutting-edge technology with ultra-high 12-bit (4096) resolution to create an impressive servo! The sturdy and unique steel gears and all-aluminum housing ensure service life and durability.
The “Plus” model features soft start and Sanwa SSR compatibility.
Features:
- Combines leading technology with ultra-high 12-bit (4096) resolution.
- Super-strong unique steel gears ensure service life and durability.
- All-aluminum housing design for long-term use.
- Ideal for steering on rock crawlers, monster trucks, and 1/8 scale vehicles.
- Soft start and Sanwa SSR compatibility.
Specifications Table
| Item | Parameter (4.8V) | Parameter (6.0V) |
|---|---|---|
| Torque | 25.0kg/347.2 oz-in | 30.0kg/416.67 oz-in |
| Speed | 0.16 sec/60 | 0.13 sec/60 |
| Dimensions (LWH) | 40.3 20.2 36.4 mm | – |
| Weight | 80.0g | – |
Technical Details Table
| Item | Specific Parameters |
|---|---|
| Operating Temperature | 14122F (-1050C) |
| Operating Current (No Load) | [email protected], [email protected] |
| Stall Current (When Locked) | [email protected], [email protected] |
| No-Load Current | [email protected], [email protected] |
| Wire Length | 300+/-5mm |
| Output Gear Spline | 25 teeth |
| Bearings | 2BB |
| Operating Stroke | 90 (10002000 microseconds) |
| Neutral Position | 1500 microseconds |
| Pulse Width Range | 9502050 microseconds |
| Maximum Stroke | Appx 130 (9002100 microseconds) |
| Refresh Rate | 333 Hz |
| Motor Type | Coreless |
