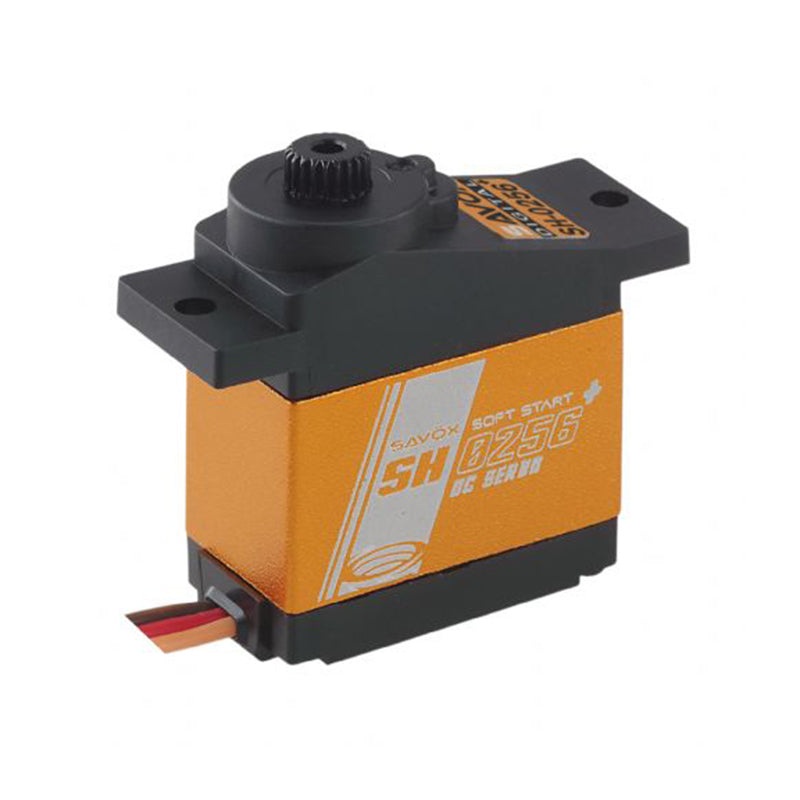

Description: The Savox SH-0256 Plus is a micro, ultra-high-torque digital servo system with massive torque in a micro housing. The “Plus” series servo systems feature soft start and Sanwa SSR compatibility.
Technical Details
- Operating Temperature: 14122F (-1050C)
- Water Resistance: Waterproof (Not Waterproof)
- Running Current (No Load): [email protected], [email protected]
- Stall Current (Locked): [email protected], [email protected]
- Idle Current: [email protected], [email protected]
- Wire Length: 2005mm
- Output Gear Spline: 21 teeth
- Bearing: 1BB
- Operating Stroke: 100 (10002000s)
- Neutral Position: 1500s
- Pulse Width Range: 8002200s
- Maximum Stroke: Appx 130 (9002100s)
- Refresh Rate: 240Hz
- Motor Type: Brushed
Features:
- Aluminum middle housing allows lower operating temperatures.
- Industrial plastic and metal gear train ensure durability and longevity.
- Ideal for small aircraft and 450-class helicopters.
Specifications Table
| Item | Parameter (4.8V) | Parameter (6.0V) |
|---|---|---|
| Torque | 3.9kg/54.2 oz | 4.6kg/63.9 oz |
| Speed | 0.21 sec/60 | 0.16 sec/60 |
| Dimensions (LWH) | 22.8 12.0 29.4 mm | – |
| Weight | 15.8g | – |
Technical Details Table
| Item | Specific Parameters |
|---|---|
| Operating Temperature | 14122F (-1050C) |
| Waterproof Performance | Waterproof (Non-waterproof) |
| Operating Current (No Load) | [email protected], [email protected] |
| Stall Current (When Locked) | [email protected], [email protected] |
| No-Load Current | [email protected], [email protected] |
| Wire Length | 200+/-5mm |
| Output Gear Spline | 21 teeth |
| Bearings | 1BB |
| Operating Stroke | 100 (10002000 microseconds) |
| Neutral Position | 1500s |
| Pulse Width Range | 8002200 microseconds |
| Maximum Stroke | Appx 130 (9002100 microseconds) |
| Refresh Rate | 240 Hz |
| Motor Type | Brushed |
