Overview

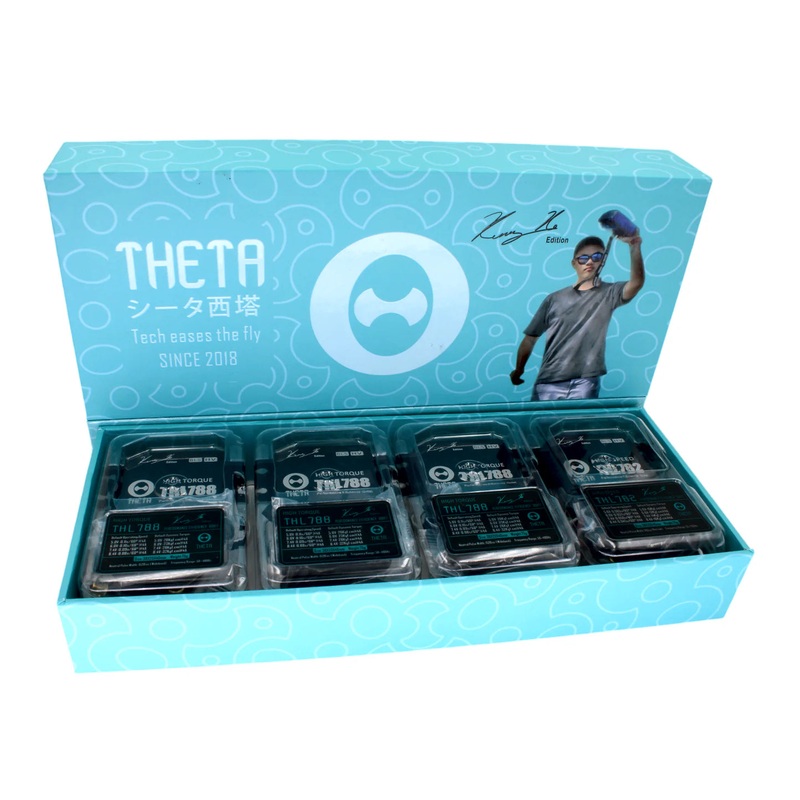

The Theta Kenny Ko Edition Servo Set is a box set including 3x THL788 cyclic servos and 1x THL782 tail servo. The servos were optimized in collaboration with multiple-time world champion Kenny Ko.
Key Features
- High voltage
- High speed
- Excellent centering
- Compatible with Futaba type horns/arms
- Light weight
Specifications
THL788 Cyclic Servo
| Voltage (V) | Current (A) | Speed (s/60) | Torque (kg*cm) |
|---|---|---|---|
| 5.0 | 4 | 0.11 | 20 |
| 6.0 | 4 | 0.10 | 23 |
| 7.4 | 4 | 0.09 | 28 |
| 8.4 | 4 | 0.08 | 32 |
- Neutral Pulse Width: 1520 us
- Frequency Range: 50-400 Hz
THL782 Tail Servo
| Voltage (V) | Current (A) | Speed (s/60) | Torque (kg*cm) |
|---|---|---|---|
| 5.0 | 4 | 0.065 | 10 |
| 6.0 | 4 | 0.057 | 12 |
| 7.4 | 4 | 0.050 | 14 |
| 8.4 | 4 | 0.045 | 16 |
- Neutral Pulse Width: 760 us
- Frequency Range: 50-700 Hz
Whats Included
- 3x THL788 cyclic servo
- 1x THL782 tail servo
Applications
- RC helicopter setups requiring cyclic servos and a tail servo
