Overview

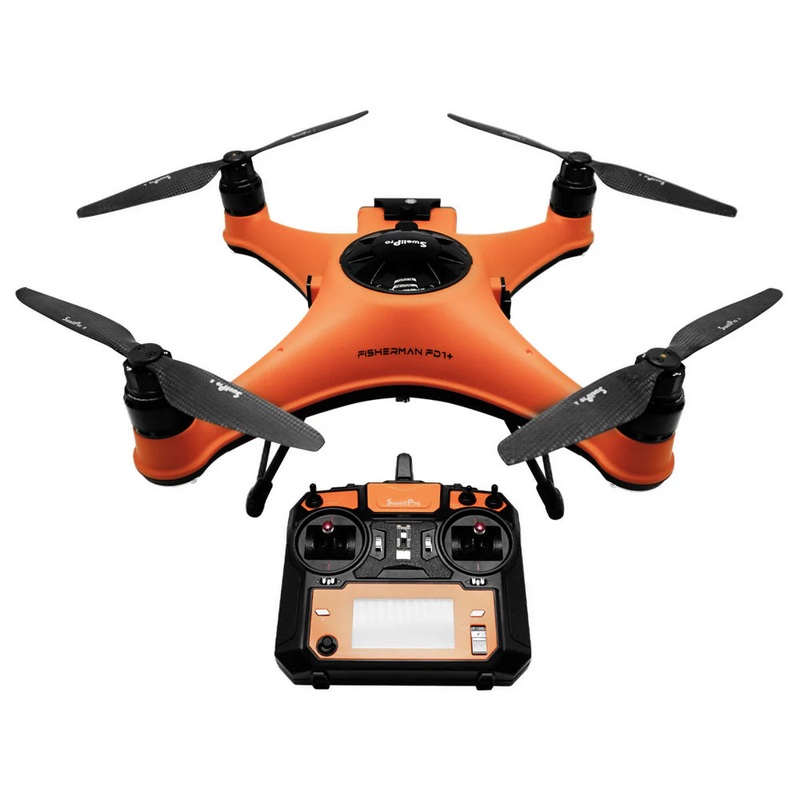

The SwellPro Fisherman FD1+ Waterproof Fishing Drone is the ultimate solution for anglers venturing into drone fishing. With a robust payload capacity of 4.8 lbs (2.2 kg), a casting range of up to 0.8 miles (1.3 km), and an IP67 waterproof rating, it excels in taking your bait to unreachable spots. Designed with user-friendly features such as calibration-free flight sensors, high-voltage batteries, and a slide-in battery system, the FD1+ is built to deliver stability and efficiency. Its rugged design ensures performance even in windy or challenging environments, making it an ideal choice for both new and experienced pilots.
Key Features
- High Payload Capacity: Lift baits up to 4.8 lbs (2.2 kg) with ease, enabling the use of heavy-duty bait for bigger catches.
- Long Casting Range: Cast bait to distances of up to 0.8 miles (1.3 km).
- IP67 Waterproof Rating: Fully seawater-proof with a marine-grade ABS fuselage and corrosion-resistant components.
- S6 Flight Controller: Real-time altitude and balance adjustments for stable operation even with heavy payloads.
- GPS 9.0 Navigation: Enhanced satellite connectivity ensures precise positioning and course stability.
- Cruise Mode: Effortless long-distance casting with automated speed and direction control.
- Automatic Return: Ensures safe return to the take-off point in emergencies like low battery or signal loss.
- Durable Design: Resistant to saltwater, wind speeds of up to 40 mph, and built with a self-floating design for water landings.
- Efficient Power System: Powered by high-voltage LiHV 6S batteries with a robust propulsion system.
Specifications
Aircraft
| Parameter | Specification |
|---|---|
| Waterproof Rating | IP67 |
| Weight | 1578g (Without battery); 2291g (With battery) |
| Max Take-Off Weight | 4491g |
| Size (Without Propellers) | 372 x 372 x 202mm |
| Size (With Propellers) | 628 x 628 x 218mm |
| Max Ascent Speed | 3m/s |
| Max Descent Speed | 2m/s |
| Max Flight Speed | GPS: 10m/s; ATTI: 18m/s (No payload), 14m/s (Max payload) |
| Max Tilt Angle | 30 |
| Max Altitude From Takeoff Point | 120m (Default) |
| Max Flight Distance | 1300m |
| Max Image Transmission Distance | 1300m |
| Max Payload Capacity | 2200g (4.8lb) |
| Max Wind Speed Resistance | 18m/s |
| Max Flight Time (Hovering) | 27 mins (No wind & no load) |
| Hovering Precision | 0.5m |
| Working Temperature | -10C~40C |
| Satellite Positioning Systems | GPS + Galileo + BeiDou |
Remote Controller
| Parameter | Specification |
|---|---|
| Size | 174 x 89 x 190mm |
| Weight | 378g (Without battery) |
| Operating Frequency | 2.402-2.478GHz |
| Bandwidth | 500KHz |
| Modulation Type | GFSK |
| Sensitivity | -92dB |
| Transmitter Power | < 20dB |
| Battery | 6V (1.5V AA x 4) |
| Channel | 6 |
Flight Battery
| Parameter | Specification |
|---|---|
| Nominal Capacity | 4200mAh |
| Nominal Voltage | 23.1V |
| Max Charging Voltage | 26.4V |
| Type | 6S LIHV |
| Size | 153.6 x 82.4 x 48.3mm |
| Weight | 716g |
| Working Temperature | 0C – 40C |
| Charging Time | 120 mins |
| Max Charging Current | 5A |
Charger
| Parameter | Specification |
|---|---|
| Input | 100~240V |
| Output | 22.2V-6A |
| Max Charging Power | 150W |
| Supported Battery Types and Cells | 6S LIHV |
| Size | 143 x 100 x 60mm |
| Weight | 454.6g |
| Working Temperature | 0C ~ 60C |
| Storage Temperature | 0C ~ 60C |
Bait Release
| Parameter | Specification |
|---|---|
| Waterproof Rating | IP67 |
| Max Payload Capacity | 2200g (4.8lb) |
| Size | 75 x 50 x 37.5mm |
| Weight | 100g |
Details
Cast further and catch bigger with the SwellPro Fisherman FD1+. This entry-level waterproof fishing drone is perfect for beginners. No onboard camera or live view screen means a simplified experience, making it the most cost-effective option on the market.
5.4LBS, 2.2KG, IP67, Level 7 bait capacity casting range seawater-proof wind resistance calibration-free GPS, 9.0 S6 slide-in flight sensors precise positioning flight controller battery.
The FD1+ bait boat has a capacity of 4.8 pounds or 22 kilograms. Its propulsion system is optimized for higher strength and efficiency, allowing it to lift baits up to 2.2 kg with ease.
Smooth Control ESCs. The integration of sine wave ESCs in FD1+ ensures gentle and progressive motor acceleration, increasing stability. This allows for delicate maneuvering and stable hovering, essential when positioning bait at specific GPS coordinates.
The S6 Flight Controller features improved responsiveness, actively adjusting in real-time to maintain a stable altitude and balance. It powered by high-voltage 6S batteries, enabling the drone to lift heavy payloads without compromising flight stability.
GPS 9.0 Calibration-free with improved satellite connectivity; thanks to its 56-flight controller, anglers can deploy FD1+ for unparalleled precision and stability when swiftly navigating to a specific fishing spot. The drone processes FD1+ to maintain its position and course even in windy conditions, ensuring stability and control during light Cruise Mode or Auto-Return.
Rechargeable Battery Replacing the battery is a breeze. Simply pop open the hatch, slide the battery into its slot, press the power button, and you’re all set. Rest assured, the hatch remains completely watertight thanks to its rubber seal, ensuring everything stays dry when sealed. Screw-on Propellers The propeller threaded design ensures straightforward setup, securely fastening the propellers to prevent them from detaching in high-thrust situations when the motors are working at high speeds and during normal operation.
The IP67 saltwater-proof FD1+ aircraft is entirely sealed, then air-pressure tested and dunk-tested to guarantee 100% waterproofing. Made from marine-grade ABS, its fuselage increases strength and prevents distortion. Corrosion-free, the waterproof motors and internal electronics are coated with a corrosion-resistant layer.
The FD1+ fishing drone features a robust propulsion system and GPS 9.0 technology for stable flight. It resists winds up to 40 mph and automatically flips to recover if it capsizes.
